意大利机械式计算器

首页 >图纸库>机械设备>自动化设备2024-07-13报告错误错误问题可与客服联系，感谢您的支持！[获取免费下载]分享好友可以免费下载哦！1

119

图纸描述

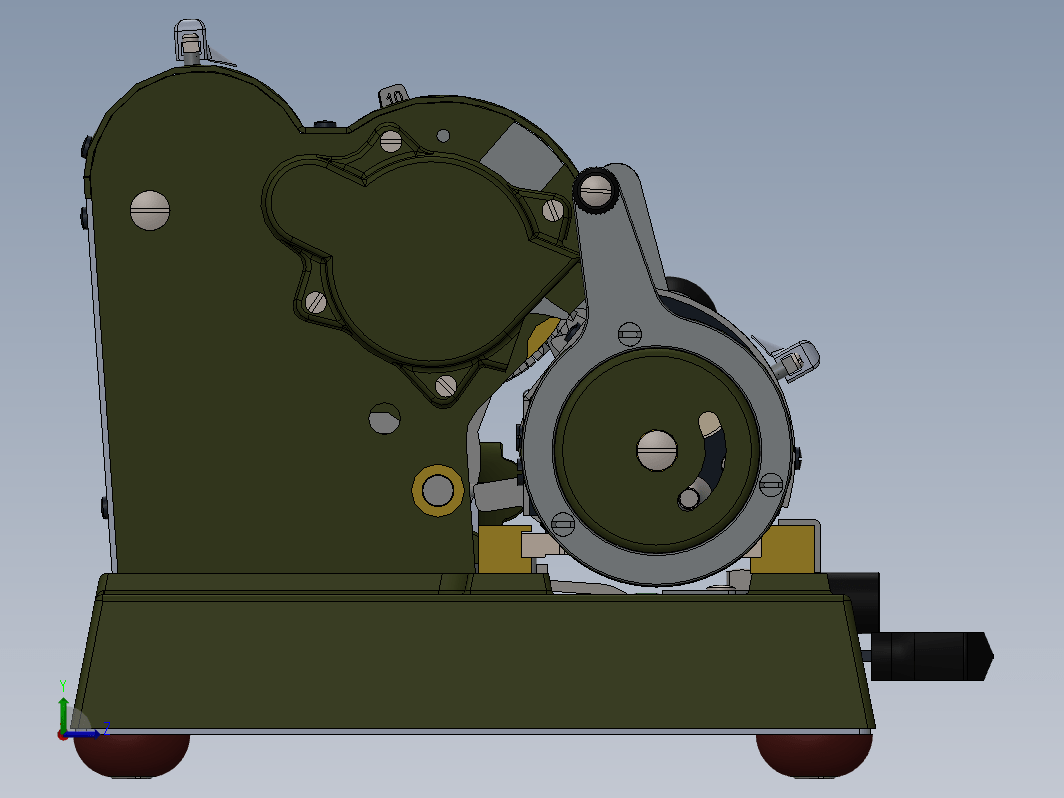

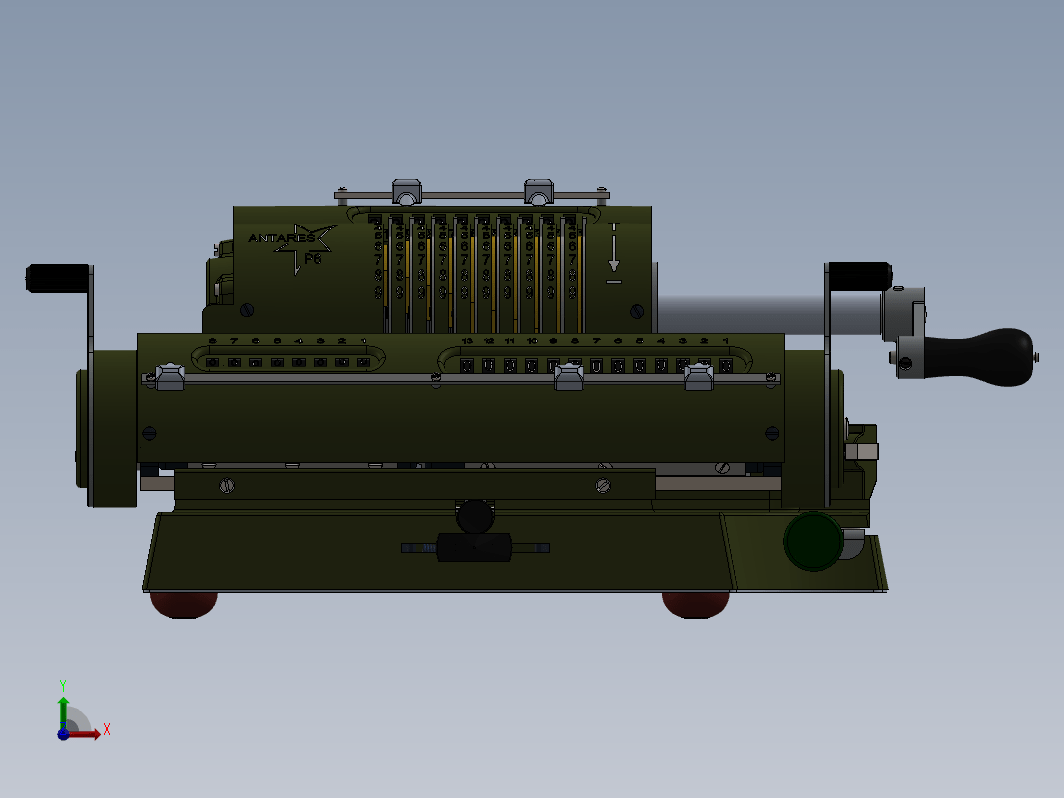

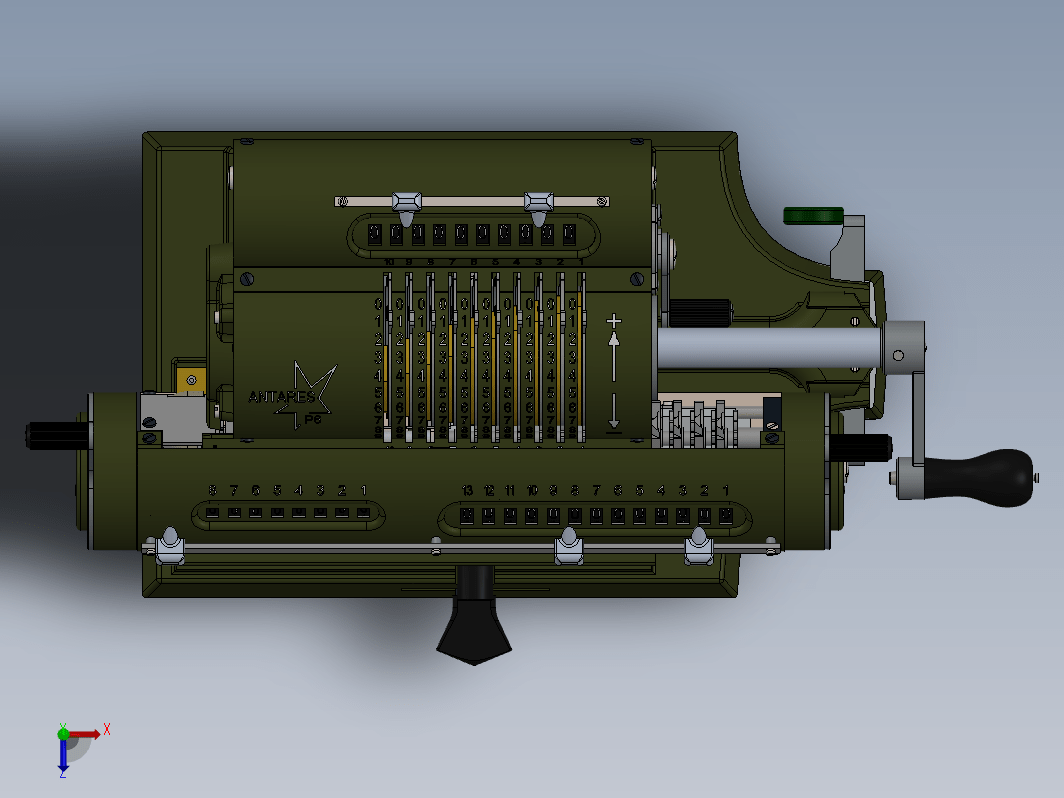

1950年研制的意大利机械式计算器3D模型非常霸气哦，纯机械结构式组装，计算都是通过结构之间的运作来进行的，非常古老的现代计算机的鼻祖，想学习机械结构巧妙运作的朋友，可以下载学习一下原理。

下载需要32金币推广可免费下载

立即下载收藏

图纸信息

图纸ID ：672076

文件大小：152.91M

所需金币：32

图纸参数：可编辑，包含特征参数

图纸分类：机械设备

图纸格式：sldasm、sldprt

软件版本：Solidworks

作者

烟雨江南

已分享: 份作品

关注

咨询
