蒸汽机车发动机模型

首页 >图纸库>交通运输>其他2024-10-13报告错误错误问题可与客服联系，感谢您的支持！0

图纸描述

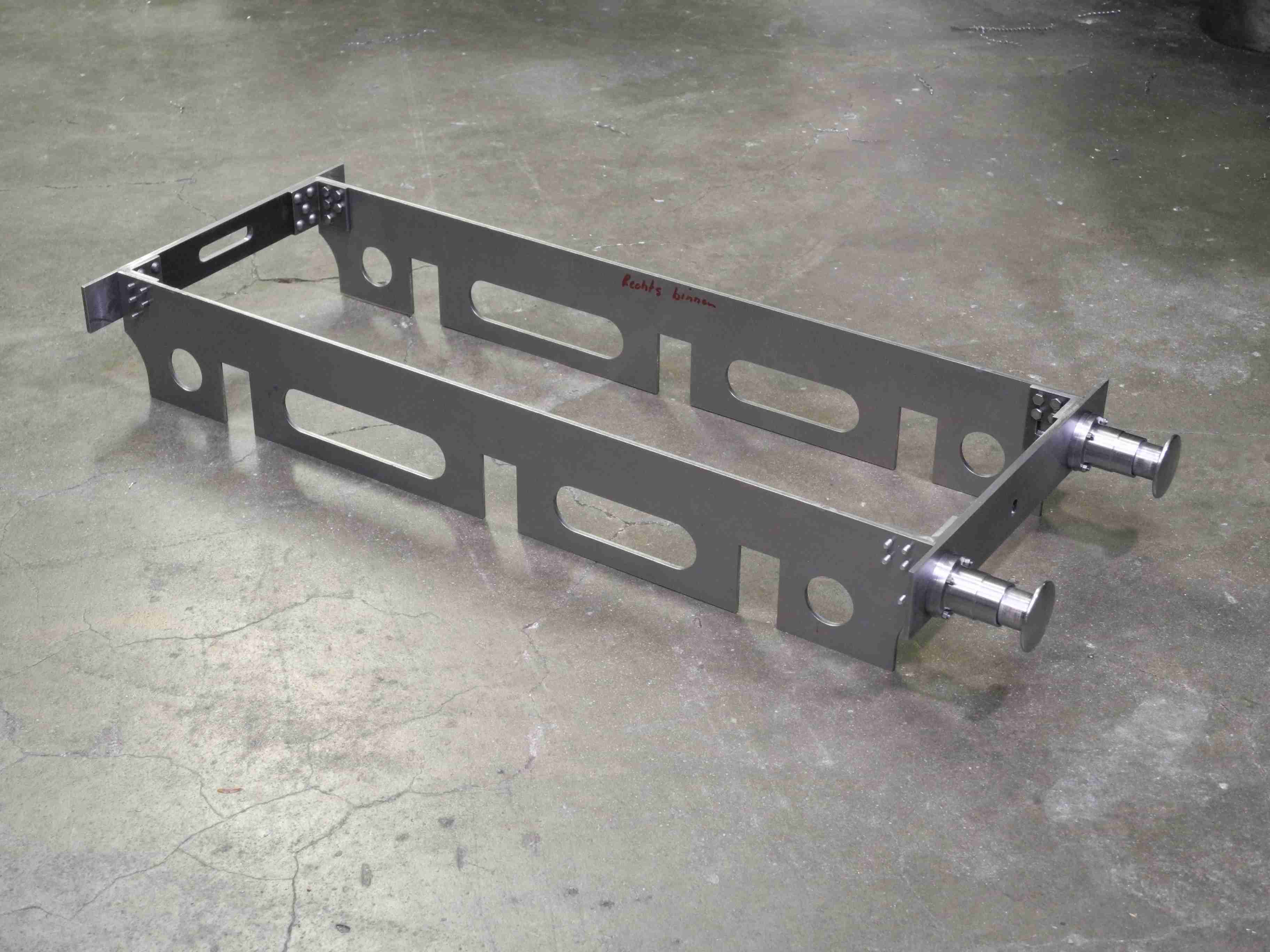

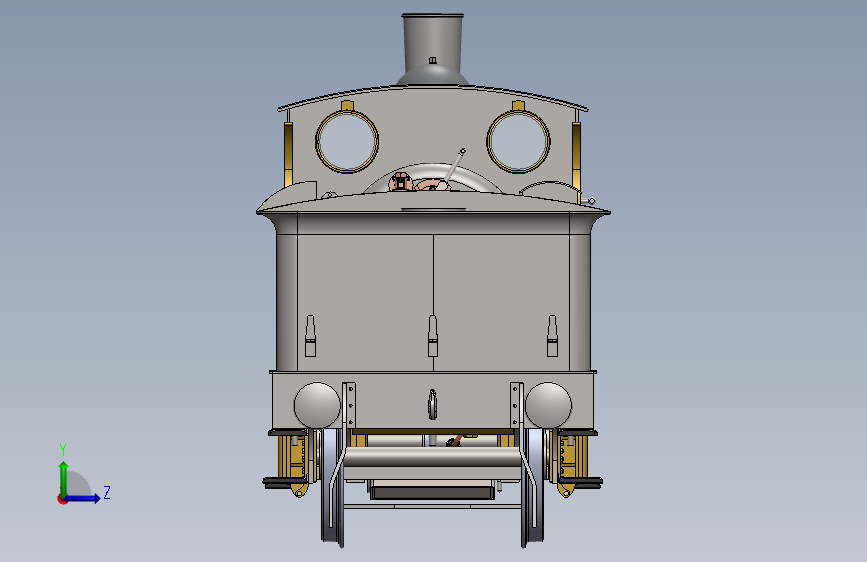

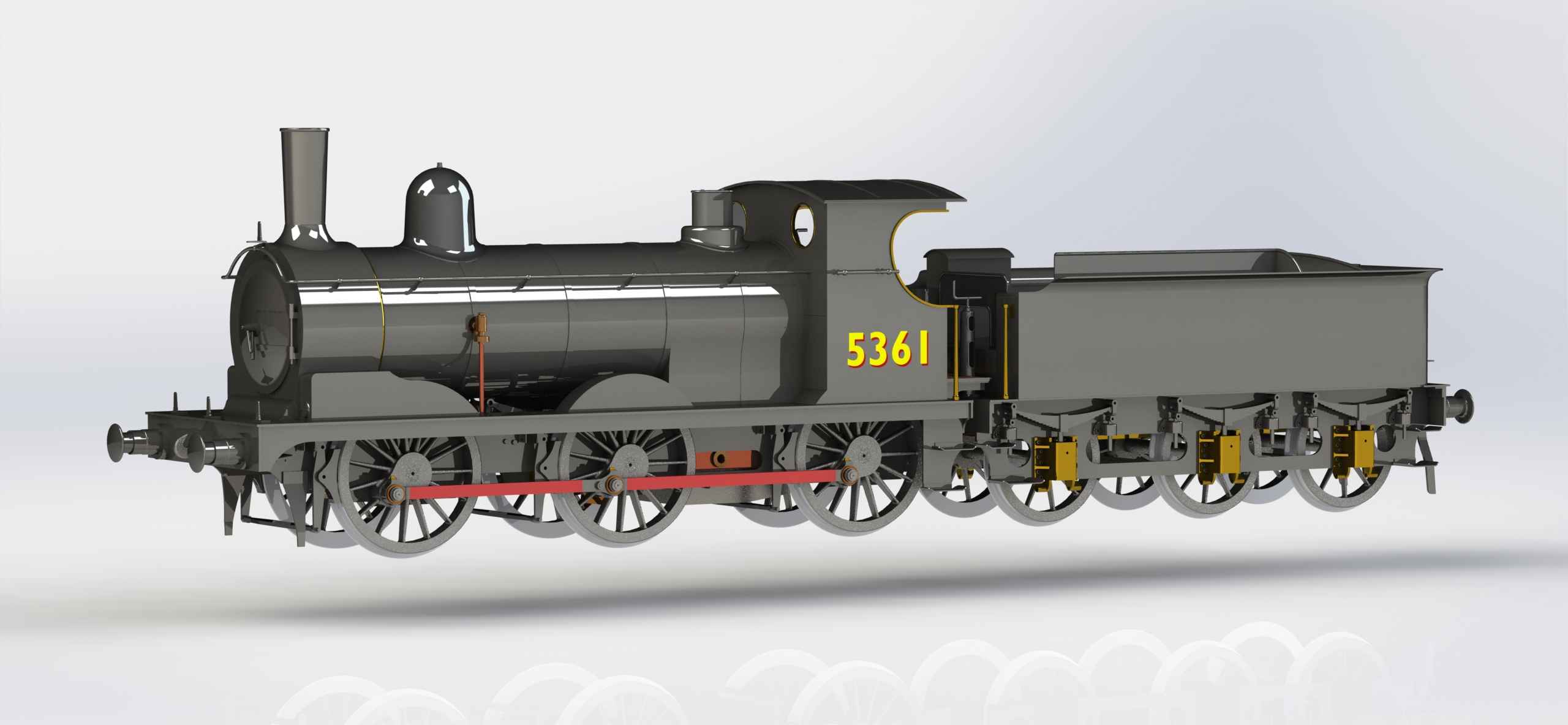

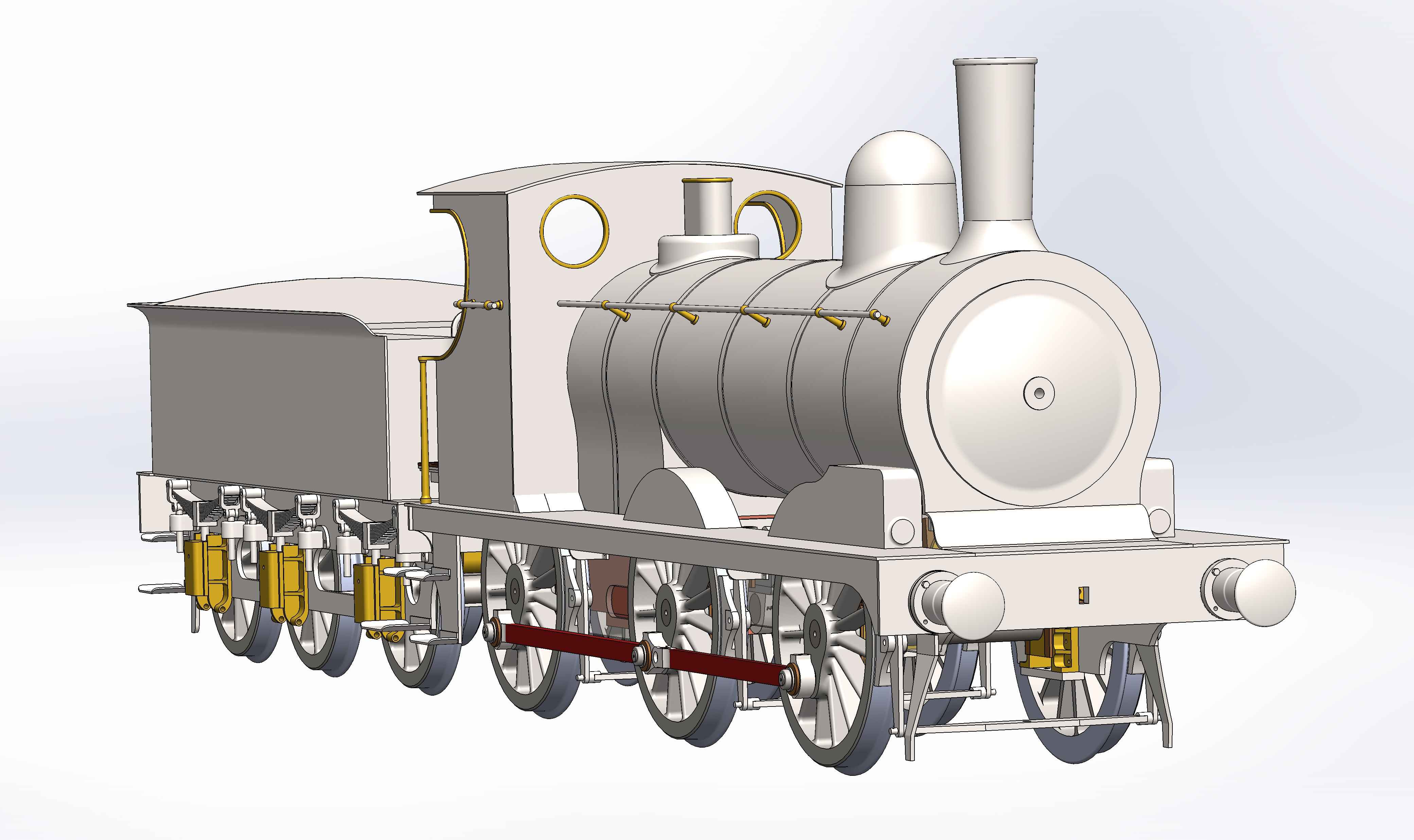

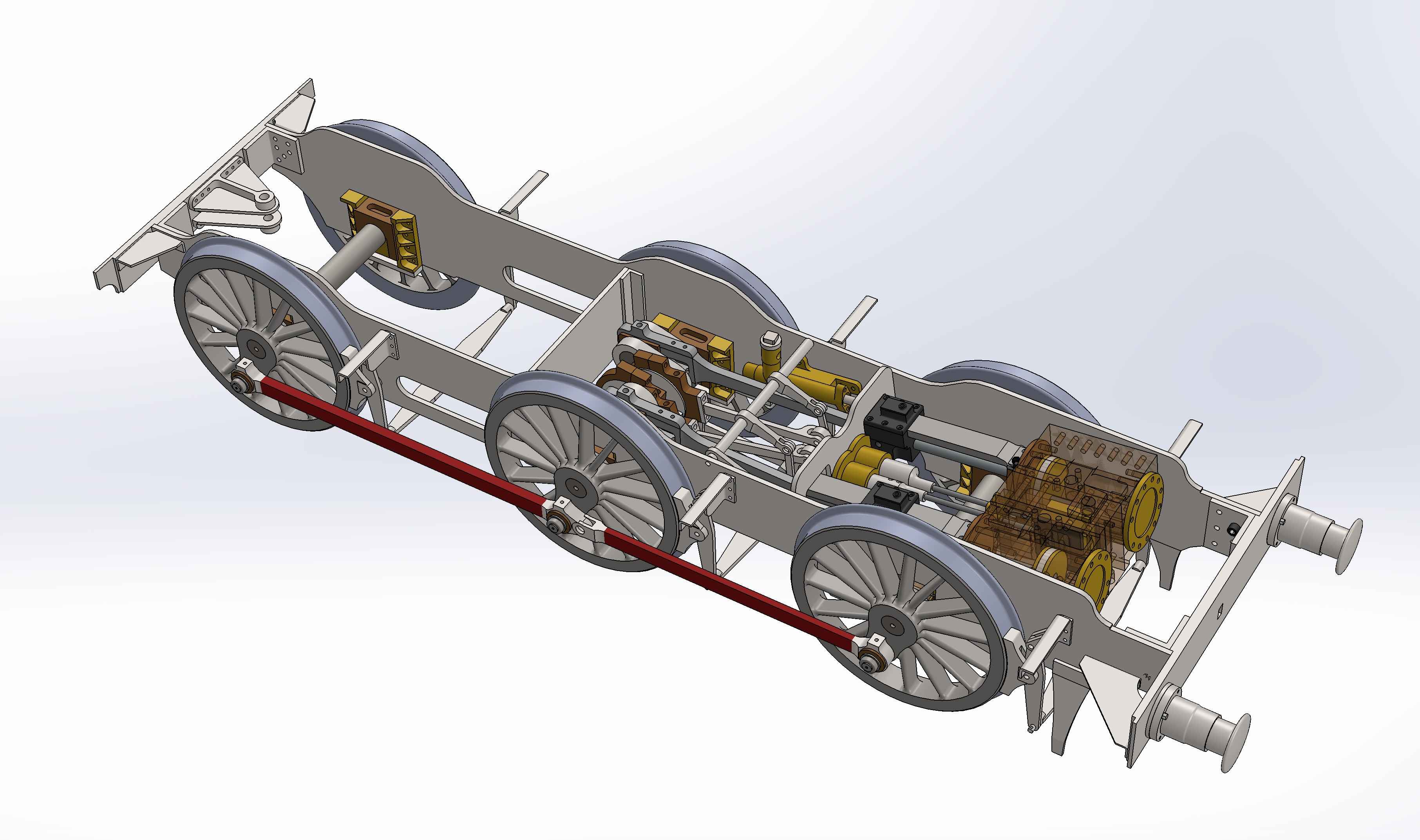

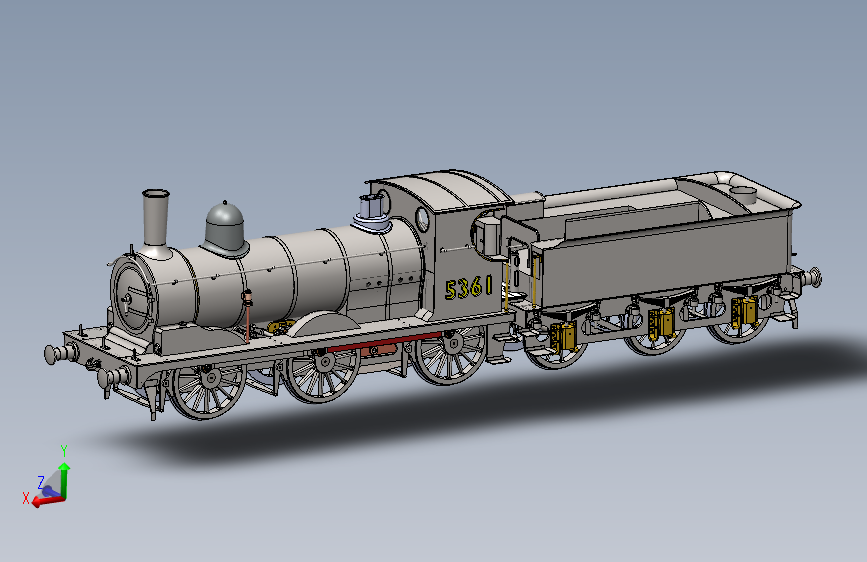

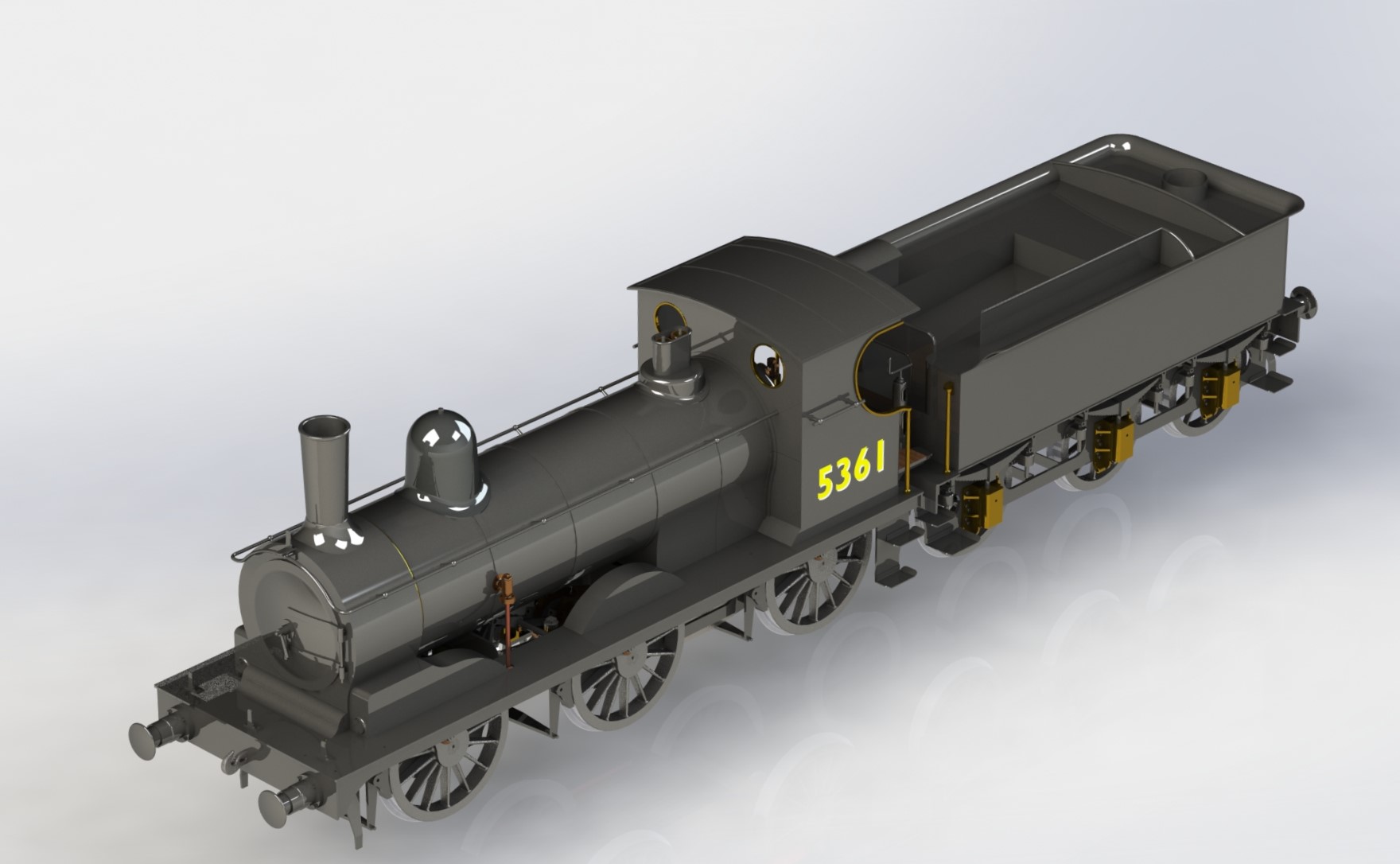

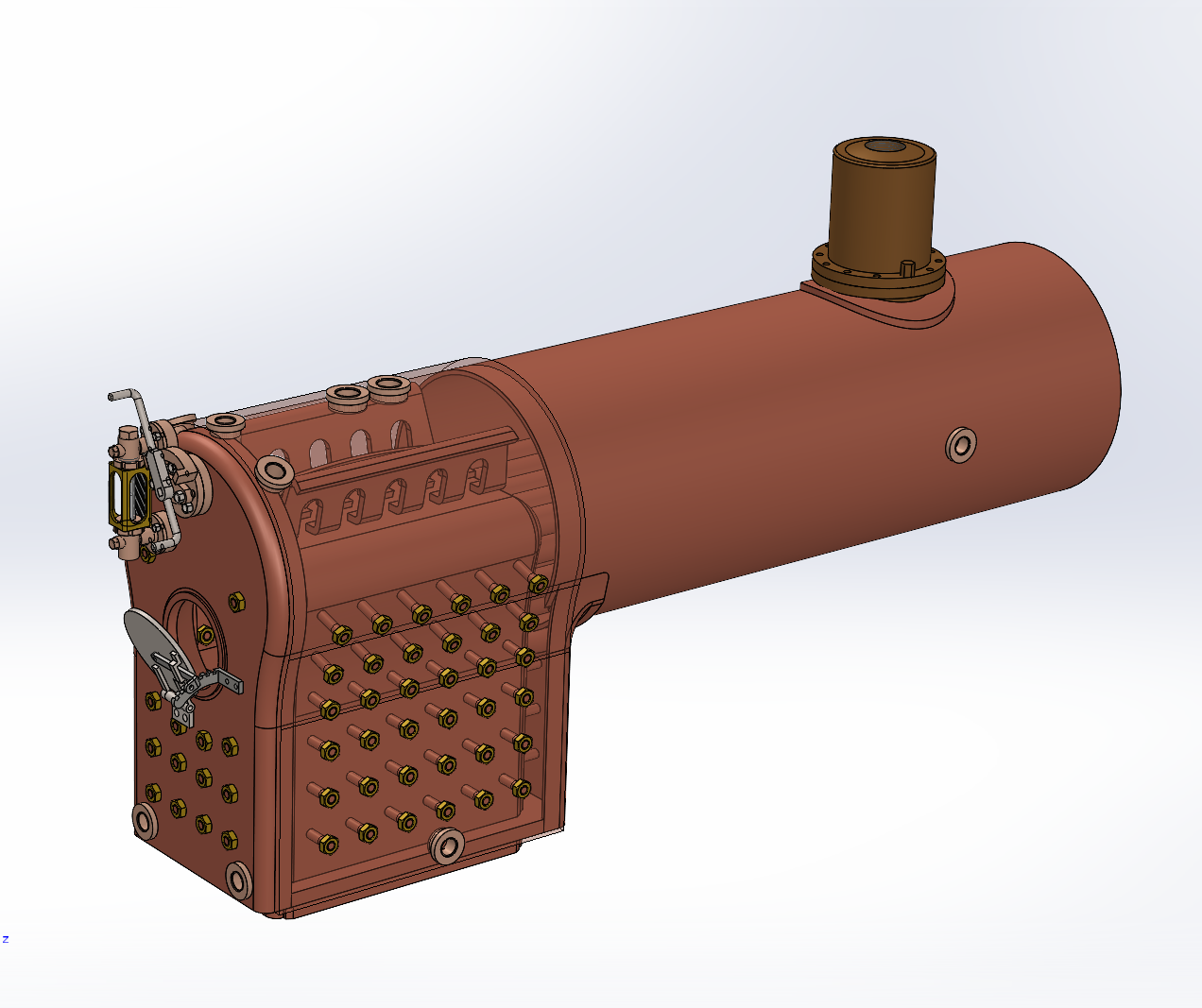

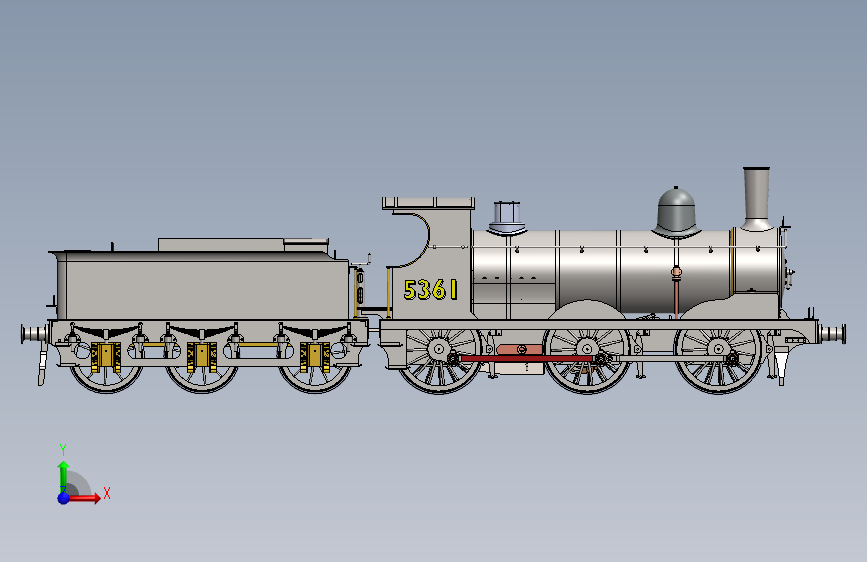

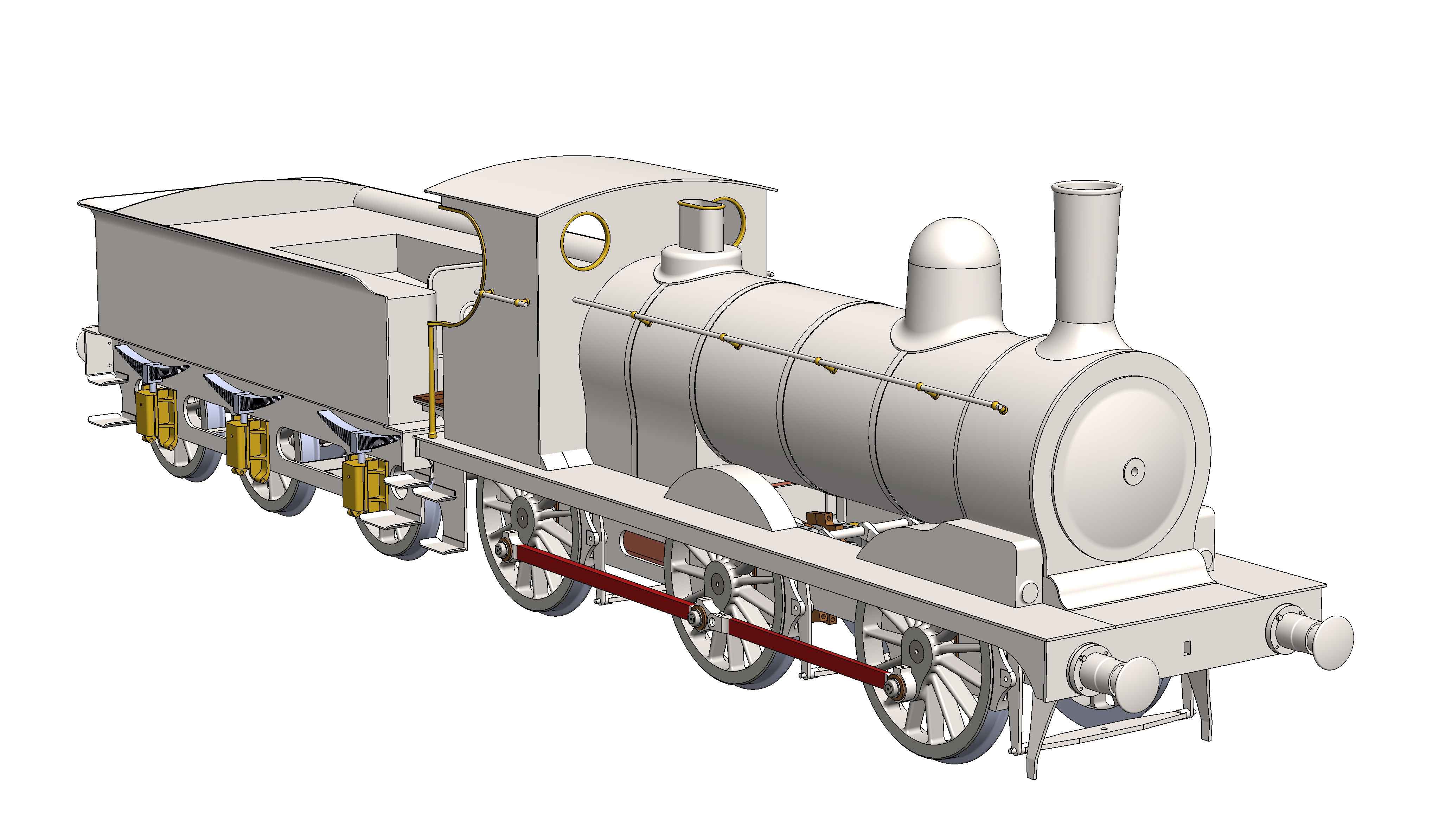

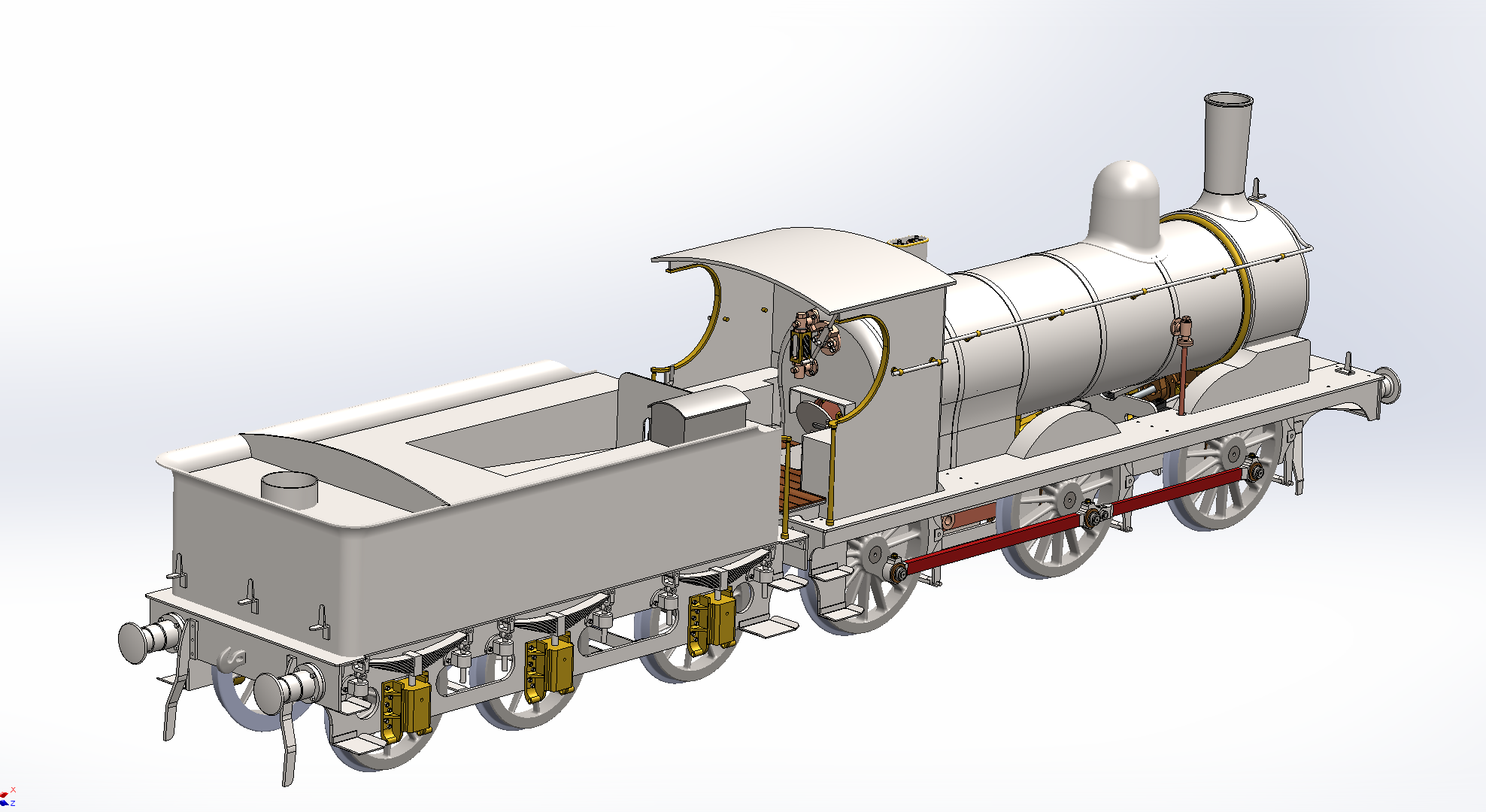

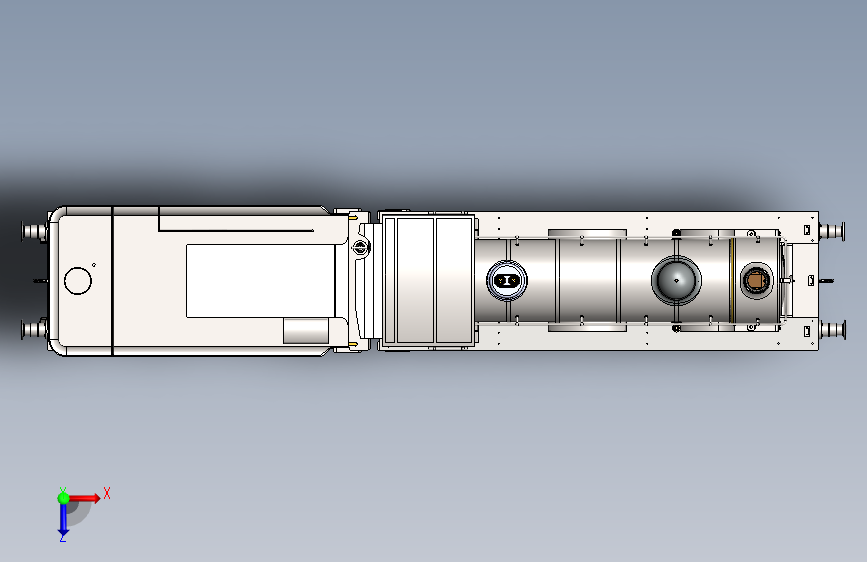

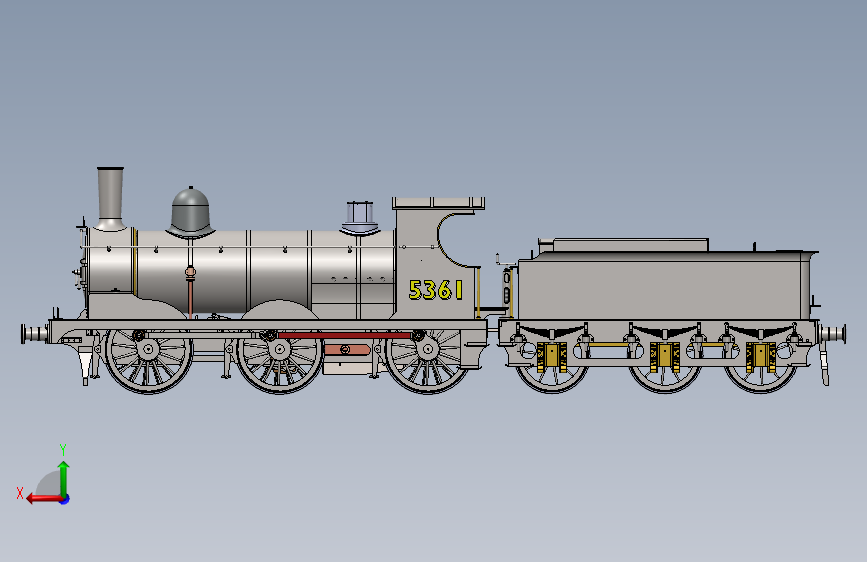

蒸汽机车发动机模型图纸下载，该图纸类型属于交通运输、其他图纸，图纸大小345.28M，共计692个文件，包含3D图纸，图纸主格式为sldasm,slddrw,sldprt,step,x_t,pdf,dxf，使用SOLIDWORKS软件制作，可编辑包含特征参数，该机械图纸可直接下载使用，可供设计参考。

下载需要62金币

立即下载收藏

图纸信息

图纸ID ：458184

文件大小：345.28M

所需金币：62

图纸参数：可编辑，包含特征参数

图纸分类：交通运输

图纸格式：sldasm,slddrw,sldprt,step,x_t,pdf,dxf

软件版本：SOLIDWORKS

作者

谯涵惭

已分享: 份作品

关注

咨询

文件列表

#	文件名称	大小
1	Assem1frameY14in5inch.SLDASM	3.29M
2	Assem1frameY14in5inch.SLDDRW	5.95M
3	loknummer.SLDPRT	124.18K
4	loknummerrood.SLDPRT	123.06K
5	M3moer.SLDPRT	87.69K
6	schaduwnummer.SLDASM	151.69K
7	TOTAALAssemY14in5inch.SLDASM	7.35M
8	TOTAALCompletelocoandtenderassembly.SLDASM	16.22M
9	TOTAALCompletelocoandtenderassembly.SLDDRW	49.50M
10	TOTAALCompletelocoandtenderassembly.STEP	24.23M
11	TOTAALCompletelocoandtenderassemblymrt23.STEP	32.55M
12	TOTAALPARACompletelocoandtenderassembly.x_t	5.97M
13	TOTAALPARACompletelocoandtenderassemblyfeb2023.x_t	5.97M
14	aanvoerpijpjeclackboxdummy.SLDPRT	59.75K
15	ashpan.SLDPRT	97.47K
16	AshpanAssywithgrate.SLDASM	189.63K
17	AssemY14safetyvalve.SLDASM	834.38K
18	Assyfiredoor.SLDASM	110.59K
19	baseregulatorhandle.SLDPRT	94.12K
20	blowdownbushsidefirebox.SLDPRT	105.99K
21	bodyclackboxsideofboiler.SLDPRT	163.30K
22	bodysafetyvalve.SLDPRT	144.76K
23	boilerbushforregulator.SLDPRT	99.86K
24	bottomashpan.SLDPRT	100.50K
25	busbackheadregualtor.SLDPRT	134.86K
26	bushsideboilershellfeeds.SLDPRT	95.24K
27	bussmokeboxtubeplate.SLDPRT	108.47K
28	capclackbox.SLDPRT	131.61K
29	catchlatchfiredoor.SLDPRT	121.25K
30	ClackboxsideonboilerAssem2.SLDASM	180.92K
31	claddingbackhead.SLDPRT	172.61K
32	CladdingboilerAssem3.SLDASM	380.60K
33	crossbindergratefirebars.SLDPRT	92.17K
34	domeplug.SLDPRT	112.41K
35	domeversterkingsplaat.SLDPRT	93.71K
36	dumpingpinfiregrate.SLDPRT	107.41K
37	firebar.SLDPRT	70.76K
38	fireboxgirder.SLDPRT	164.77K
39	firedoor.SLDPRT	116.59K
40	firegrateY14.SLDASM	97.47K
41	flensclackboxsideofboiler.SLDPRT	100.50K
42	hingefiregrate.SLDPRT	60.99K
43	hingefrontsupportfiregrate.SLDPRT	59.18K
44	hingepinfiregrate.SLDPRT	56.50K
45	klopmalachterfrontketelvoor3mmdikkoper.SLDPRT	86.85K
46	klopmalbinnenbvuurkistfronten.SLDPRT	82.68K
47	klopmalenthroatplateAssem1.SLDASM	154.14K
48	klopmalthroadplate.pdf	280.18K
49	klopmalthroadplate.SLDDRW	332.34K
50	klopmalthroadplate.SLDPRT	82.00K
51	kogelveiligheidsventielrond6.35.SLDPRT	90.91K
52	kogelveiligheidsventielrond6.SLDPRT	120.55K
53	latchfiredoor.SLDPRT	96.74K
54	mainsteampipeinboiler.SLDPRT	100.73K
55	messingM4moer.SLDPRT	84.60K
56	middelGirderFirebox.SLDDRW	358.76K
57	middelGirderFirebox.SLDPRT	127.18K
58	montageclackboxsideofboiler.SLDPRT	123.67K
59	montageflenspeilglas.SLDPRT	113.37K
60	peilglasAssycompleet.SLDASM	464.02K
61	PeilglasbodybovenstedeelAssem1.SLDASM	179.04K
62	PeilglasbodyonderstedeelAssem1.SLDASM	135.99K
63	peilglasboutvoordroorprikgat.SLDPRT	80.94K
64	peilglasbovenstukafsluitbout.SLDPRT	81.60K
65	peilglasbovenstukvoorglasbuis.SLDPRT	119.23K
66	peilglasbusinbackhead.SLDPRT	106.15K
67	peilglasbusinbackheadonderste.SLDPRT	105.08K
68	peilglasglazenbuis.SLDPRT	49.74K
69	peilglasmoeromglasaftedichten.SLDPRT	215.42K
70	peilglasonderstukvoorglasbuis.SLDPRT	126.30K
71	peilglaswitzwarteachterplaat.SLDPRT	96.60K
72	peillgasprotector.SLDPRT	111.21K
73	PerformanceLog.txt	54B
74	regulatorhandleassy.SLDASM	108.94K
75	regulatorhandlebottompiece.SLDPRT	79.52K
76	regulatorhandletoppiece.SLDPRT	79.32K
77	regulatorstopforbusbackhead.SLDPRT	109.63K
78	safetyvalvebushtopfirebox.SLDPRT	96.79K
79	scharniervuurdeur.SLDPRT	84.16K
80	smokeboxtubeplatewithstiffner.SLDASM	195.12K
81	steunboutenmoerenachterzijdeketelstookfrontAssem1.SLDASM	89.60K
82	steunboutmetmoerenvoortopvuurkistachterzijde.SLDASM	90.92K
83	steunboutvlakgedeeltezijwanden.SLDPRT	78.40K
84	steunboutvuurkistachterzijde.SLDPRT	71.03K
85	steunboutvuurkistvoorrzijde.SLDPRT	71.23K
86	steunboutvuurkistzijkant1sterijvanboven.SLDPRT	71.82K
87	steunboutvuurkistzijkant2derijvanboven.SLDPRT	77.94K
88	stiffnertubeplate.SLDPRT	70.84K
89	stopbusregulator.SLDPRT	101.03K
90	topbushachteropfireboxouterwrapper.SLDPRT	96.28K
91	Y14-backhead.SLDDRW	494.78K
92	Y14-backhead.SLDPRT	281.28K
93	Y14-boilerfireboxtopforsimulation.SLDASM	1.99M
94	Y14-boilerfrontsmokebox.SLDDRW	485.36K
95	Y14-boilerfrontsmokebox.SLDPRT	240.32K
96	Y14-boilerinnerfireboxandtubesltotaal.SLDASM	306.69K
97	Y14-boileroutershelltotaal.SLDASM	554.18K
98	Y14-boilershell.SLDDRW	346.11K
99	Y14-boilershell.SLDPRT	133.37K
100	Y14-boilertotaal.SLDASM	6.02M
101	Y14-boilertotaal.SLDDRW	14.70M
102	Y14-domeringboilershell.SLDPRT	156.81K
103	Y14-fireboxinnerbackplate3mmb.SLDDRW	390.59K
104	Y14-fireboxinnerbackplate3mmb.SLDPRT	204.43K
105	Y14-fireboxouteshell.SLDDRW	401.09K
106	Y14-fireboxouteshell.SLDPRT	176.33K
107	Y14-fireboxtubeplate3mm.SLDDRW	417.26K
108	Y14-fireboxtubeplate3mm.SLDPRT	254.36K
109	Y14-fireboxwrapper25mm.SLDPRT	163.47K
110	Y14-fireboxwrapper3mm.SLDPRT	112.56K
111	Y14-firedoorring.SLDDRW	454.90K
112	Y14-firedoorring.SLDPRT	128.44K
113	Y14-firetube.SLDPRT	74.94K
114	Y14-innerdomecasing.SLDPRT	208.47K
115	Y14-throatplate.SLDDRW	494.20K
116	Y14-throatplate.SLDPRT	209.16K
117	Y14ballstemsafetyvalve.SLDPRT	62.95K
118	Y14setnutsafetyvalve.SLDPRT	162.01K
119	Y14springsafetyvalveinside.SLDPRT	748.91K
120	Y14vuurkistraam.SLDPRT	103.74K
121	~$Y14 - fire box inner back plate 3 mm b.SLDDRW	6B
122	Assem1brakehangerandsupportplate.SLDASM	141.09K
123	Assem1brakehangerconnectionplate.SLDASM	75.31K
124	brakeblockloco.SLDPRT	109.21K
125	brakehangerloco.SLDPRT	64.31K
126	brakehangerlug.SLDPRT	82.32K
127	connectionplatebetweenhangers.SLDPRT	56.88K
128	kopvanconcectionplatebetweenhangers.SLDPRT	79.76K
129	Mirrorbrakeblockloco.SLDPRT	90.06K
130	BackupofCylinderAssem1.SLDASM	264.82K
131	bronzedisk160x52mm.SLDPRT	50.41K
132	capcrossheadoilresevoir.SLDPRT	88.63K
133	crosshead.SLDPRT	227.31K
134	crossheadpumpattachmentplate.SLDPRT	124.99K
135	crossheadtopplate.SLDPRT	130.76K
136	cylinder.SLDPRT	428.12K
137	CylinderAssem1.SLDASM	266.79K
138	frontcylindercover.SLDPRT	121.25K
139	hartlijnpinvooruitlijning.SLDPRT	38.82K
140	M3moer.SLDPRT	95.87K
141	piston.SLDPRT	87.96K
142	pistoncrossheadpump.SLDPRT	63.10K
143	pistonringTeflon.SLDPRT	81.48K
144	pistonrod.SLDPRT	66.12K
145	Pistonrodandcrossheadassembly.SLDASM	129.12K
146	rearcylindercover.SLDPRT	166.58K
147	schuifkastmidden.SLDPRT	205.36K
148	slidebar.SLDPRT	100.98K
149	steamvalvebakschuif.SLDPRT	94.57K
150	valvebuckle.SLDPRT	116.62K
151	valvespindlegland.SLDPRT	99.85K
152	zaagmogelijkheidcilinderblokkenuitrond160mmbrons.SLDASM	190.80K
153	Assywatercrossheadpump.SLDASM	331.70K
154	banjocrossheadpumptop.SLDPRT	167.53K
155	bodycrossheadpump.SLDPRT	290.18K
156	eindboutbodypomphuis.SLDPRT	88.07K
157	klepkogelrond4mmpomp.SLDPRT	116.61K
158	pakkingdrukkerpompplunjer.SLDPRT	81.21K
159	stoppinkogelklepwaterpomp.SLDPRT	75.01K
160	turretbanjobolttop.SLDPRT	82.63K
161	uniononderzijdepomphuisaanvoerwater.SLDPRT	106.76K
162	4mmklinknagelstaal.SLDPRT	86.11K
163	Assem1hornblocksloco.SLDASM	140.46K
164	Assem1hornblockslocofrontleftwithcutout.SLDASM	208.83K
165	Assem1hornblockslocofrontrightwithcutout.SLDASM	197.56K
166	BackupofAssem1hornblocksloco.SLDASM	132.02K
167	Backupofboilercladding.SLDPRT	242.09K
168	Backupofbufferassembly.SLDASM	166.97K
169	Backupofhornblockandaxleboxassembly.SLDASM	129.64K
170	boilercladding.SLDPRT	246.45K
171	boilercladdingconflictedcopy2023-05-15143157.SLDPRT	238.11K
172	bufferassembly.pdf	235.69K
173	bufferassembly.SLDASM	165.42K
174	bufferassembly.SLDDRW	541.33K
175	bufferbeam.pdf	44.20K
176	bufferbeam.SLDDRW	127.00K
177	bufferbeam.SLDPRT	121.39K
178	bufferbeamanglebracket.SLDDRW	385.96K
179	bufferbeamanglebracket.SLDPRT	156.15K
180	bufferbeamanglebracketloco.PDF	204.49K
181	bufferbeamExemplaarmetconflictvanLT1412942020-12-11.SLDPRT	111.96K
182	bufferhead.SLDPRT	136.31K
183	bufferstock.SLDPRT	197.05K
184	chimneytop.SLDPRT	123.25K
185	connectingpin.SLDPRT	93.97K
186	couplingplaterearloco.SLDPRT	86.84K
187	couplingplaterearlocolongversion.SLDPRT	102.94K
188	dragbeamanglebracketloco.PDF	198.17K
189	dragbeamanglebrackettender.PDF	195.75K
190	drawbarloco-tender.SLDPRT	145.34K
191	drawhook.DXF	79.58K
192	Drawhook.SLDDRW	23.26K
193	drawhook.SLDPRT	867.27K
194	drawhook2.SLDDRW	366.97K
195	externalfrontsupportplatebufferbeam.SLDPRT	116.30K
196	externalrearsupportplatedragbeamloco.SLDDRW	340.65K
197	externalrearsupportplatedragbeamloco.SLDPRT	183.04K
198	frontleftdragbeamanglebrackettender.SLDDRW	349.55K
199	frontleftdragbeamanglebrackettender.SLDPRT	112.02K
200	frontsupportplatebufferbeamAssy.SLDASM	66.21K
201	guardironrail.SLDPRT	127.56K
202	handrailboiler.SLDPRT	46.01K
203	hoekprofielvoorzijdemiddenrunningboards.SLDPRT	70.78K
204	hoekprofielvoorzijderunningboards.SLDPRT	67.35K
205	hornblock.SLDDRW	411.20K
206	hornblock.SLDPRT	126.94K
207	hornblockandaxleboxassembly.SLDASM	130.18K
208	hornblockloco.PDF	204.86K
209	Mainframe3mmlasersnijden.DXF	34.00K
210	Mainframeplate3mmlasersnijden.STEP	149.95K
211	Mainframeplate5inch.SLDDRW	126.66K
212	middlestretcher.SLDPRT	273.01K
213	Mirrorexternalfrontsupportplatebufferbeam.SLDDRW	342.13K
214	Mirrorexternalfrontsupportplatebufferbeam.SLDPRT	98.25K
215	motionplate.DXF	28.17K
216	motionplate.SLDDRW	97.28K
217	motionplate.SLDPRT	159.36K
218	motionplatelasersnijden3mm.STEP	82.99K
219	rearbufferbeamengine.pdf	83.34K
220	rearbufferbeamengine.SLDDRW	336.17K
221	rearbufferbeamengine.SLDPRT	103.75K
222	rearleftbufferbeamanglebracket.SLDDRW	371.59K
223	rearleftbufferbeamanglebracketloco.SLDDRW	362.00K
224	rearleftbufferbeamanglebracketloco.SLDPRT	112.41K
225	rearrightbufferbeamanglebracket.SLDPRT	96.82K
226	reartrapbevestingsprofiel.SLDPRT	47.80K
227	tenderbufferbeamanglebracket.SLDDRW	363.03K
228	tenderbufferbeamanglebracket.SLDPRT	194.75K
229	tenderbufferbeamanglebracketA.SLDDRW	367.60K
230	TestAssem1tenderlococoupling.SLDASM	148.11K
231	tophornblocks.SLDPRT	115.07K
232	oliepompcontainer.SLDPRT	68.08K
233	~$oliepomp container.SLDPRT	6B
234	Backupofexcenterforrearaxle.SLDPRT	83.87K
235	BackupofT3-Assem2RevisionoilpumpNBRvalve.SLDASM	124.12K
236	BackupofT3-inafag_hf0306-kf_36l7l1kpkmzg20xy7juuqezwe.SLDASM	103.28K
237	BackupofT3-oilpumpramassy.SLDASM	61.54K
238	BackupofT3-Oiltankassembly.SLDASM	1007.73K
239	BackupofT3-returnvalve.SLDASM	230.71K
240	excenterforrearaxle.SLDPRT	83.66K
241	T3-Assem2RevisionoilpumpNBRvalve.SLDASM	126.72K
242	T3-ball3mm.SLDPRT	105.66K
243	T3-ball4mm.SLDPRT	104.00K
244	T3-boltpumphouse.SLDPRT	103.97K
245	T3-brassnipple.SLDPRT	78.66K
246	T3-clutchbearinghouse.SLDPRT	142.19K
247	T3-connectionpipereturnvalve.SLDPRT	126.28K
248	T3-drukstukkogel3mm.SLDPRT	62.09K
249	T3-drukstukkogel4mm.SLDPRT	80.49K
250	T3-handwheelpump.SLDDRW	684.00K
251	T3-handwheelpump.SLDPRT	270.12K
252	T3-hingeforlid.SLDDRW	581.50K
253	T3-hingeforlid.SLDPRT	177.47K
254	T3-inafag_hf0306-kf_36l7l1kpkmzg20xy7juuqezwe.SLDASM	104.05K
255	T3-inafag_hf0306-kf_36l7l1kpkmzg20xy7juuqezwe_01.SLDPRT	71.70K
256	T3-inafag_hf0306-kf_36l7l1kpkmzg20xy7juuqezwe_02.SLDPRT	62.56K
257	T3-inafag_hf0306-kf_36l7l1kpkmzg20xy7juuqezwe_03.SLDPRT	100.58K
258	T3-indicatorbackplate.SLDPRT	62.79K
259	T3-lid.SLDPRT	110.14K
260	T3-NBRvalve.SLDPRT	50.87K
261	T3-NBRvalvecup.SLDPRT	89.13K
262	T3-oilcheckvalvespring2.SLDPRT	349.88K
263	T3-oillevelglass.SLDPRT	40.24K
264	T3-oillevelindicatorwindowframe.SLDDRW	600.00K
265	T3-oillevelindicatorwindowframe.SLDPRT	80.62K
266	T3-oilpumpdriveshaft.SLDPRT	61.78K
267	T3-oilpumpexcenter.SLDDRW	665.50K
268	T3-oilpumpexcenter.SLDPRT	122.02K
269	T3-oilpumphouse.SLDDRW	418.71K
270	T3-oilpumphouse.SLDPRT	144.36K
271	T3-oilpumphouseREVISION.SLDPRT	158.34K
272	T3-oilpumpram.SLDPRT	48.59K
273	T3-oilpumpramassy.SLDASM	63.43K
274	T3-Oiltankassembly.SLDASM	1016.33K
275	T3-Oiltankassembly.SLDDRW	1.86M
276	T3-oiltankback.SLDPRT	50.37K
277	T3-oiltankbottom.SLDPRT	91.37K
278	T3-Oiltanksides.SLDPRT	91.26K
279	T3-rearlid.SLDPRT	98.55K
280	T3-retainingnutclutchbearinghouse.SLDPRT	91.16K
281	T3-retunvalveunion.SLDPRT	130.06K
282	T3-returnvalve.SLDASM	232.11K
283	T3-returnvalve.SLDDRW	667.50K
284	T3-returnvalvebody.SLDPRT	111.70K
285	T3-rivet1mm.SLDPRT	86.38K
286	T3-scotchcrank.SLDDRW	563.00K
287	T3-scotchcrank.SLDPRT	87.08K
288	T3-unionpumphouseMF6.SLDPRT	134.08K
289	T3-warteloilpump.SLDPRT	96.43K
290	Assem1connectingrods.SLDASM	141.00K
291	Assem1eccentricbottombackwardsleft.SLDASM	104.35K
292	Assem1eccentrictopforwardleft.SLDASM	101.50K
293	BackupofY14-Assem1RIGHTconnectingrods.SLDASM	191.69K
294	conceptbigendbearing.SLDPRT	148.34K
295	connectingpinfrontandrearconnectingrods.SLDPRT	120.62K
296	connectingrodstopcollar.SLDPRT	49.02K
297	Dieblock.SLDPRT	74.32K
298	drijfstangassembly.SLDASM	117.31K
299	Drijfstangconnectingrod.SLDPRT	174.04K
300	eccententric.SLDPRT	113.84K
301	eccententricstrapconnectingrod.SLDPRT	158.17K
302	eccententricstraps.SLDPRT	153.14K
303	expansionlink.SLDPRT	189.29K
304	frontandrearbearingbush.SLDPRT	68.28K
305	frontconnectingrod.SLDPRT	161.51K
306	LeftAssem1connectingrod.SLDASM	91.67K
307	liftingarmhorizontal.SLDPRT	95.09K
308	liftingarmhorizontalweighshaft.SLDPRT	110.37K
309	liftinglink.SLDPRT	82.42K
310	littleendbearingbush.SLDPRT	90.07K
311	middlebearingbush.SLDPRT	76.17K
312	rearconnectingrod.SLDPRT	155.08K
313	RightAssem1connectingrod.SLDASM	90.96K
314	sketchlayoutlengthofeccentricrod.SLDPRT	60.51K
315	smeernippeltopconnectingrods.SLDPRT	108.84K
316	tekeningexcentriekenDidcotmetsketchpicture.SLDPRT	2.04M
317	valvespindle.SLDPRT	69.63K
318	valvespindleguideblock.SLDPRT	132.08K
319	valvespindleguiderodrond12.SLDPRT	229.38K
320	Weighshaftrod.SLDPRT	55.46K
321	Y14-Assem1connectingrods.SLDASM	95.08K
322	Y14-Assem1LEFTconnectingrods.SLDASM	191.43K
323	Y14-Assem1RIGHTconnectingrods.SLDASM	196.30K
324	Y14frontconnectingrod.SLDPRT	187.20K
325	Y14rearconnectingrod.SLDPRT	224.29K
326	Backupoffootplateextentsion.SLDASM	357.75K
327	Backupofrunningboard.SLDPRT	115.64K
328	Backupofsafetyvalvebasecover.SLDPRT	269.79K
329	boxesinsidecab.SLDPRT	124.84K
330	cabassy.SLDASM	303.21K
331	cabassyconflictedcopy2023-05-15141418.SLDASM	249.14K
332	cabfloor.SLDPRT	52.61K
333	footplateextentsion.SLDASM	381.63K
334	frontgripsmokebox.SLDPRT	123.87K
335	frontgripsmokebox1.SLDPRT	181.86K
336	frontgripsmokebox1conflictedcopy2023-05-15143408.SLDPRT	171.34K
337	frontsplashers.SLDASM	160.65K
338	handrailboiler.SLDPRT	46.05K
339	handrailknob.SLDPRT	139.33K
340	handrailknobshort.SLDPRT	144.37K
341	handrailsupportflangefrontcab.SLDPRT	88.16K
342	handrailzijkantcab.SLDPRT	54.84K
343	lampsteunvoorzijde.SLDPRT	88.79K
344	lampsteunvoorzijdetopsmokeboxSLDPRT.SLDPRT	111.58K
345	Mirrorrunningboardsupport.SLDPRT	149.51K
346	Mirrorsteunvoetplaatextentsieloc.SLDPRT	41.78K
347	MirrorY-14wheelarcherighthandfrontinclsandbox.SLDPRT	141.63K
348	runningboard.DXF	24.88K
349	runningboard.SLDDRW	336.58K
350	runningboard.SLDPRT	119.44K
351	runningboardconflictedcopy2023-05-15171118.SLDPRT	118.76K
352	runningboardsupport.SLDDRW	384.31K
353	runningboardsupport.SLDPRT	179.46K
354	safetyvalvebasecover.SLDPRT	272.63K
355	smokeboxbrassring.SLDPRT	74.49K
356	steunvoetplaatextentsieloc.SLDPRT	55.13K
357	topwoodcabfloor.SLDPRT	333.47K
358	vensterglascabine.SLDPRT	46.58K
359	vloerplaatstaalbeschermplaatvloer.SLDPRT	53.69K
360	Y-14bottomfrontsteptender.SLDPRT	126.54K
361	Y-14bottomrearsteploco.SLDPRT	128.28K
362	Y-14bottomrearsteptender.SLDPRT	128.13K
363	Y-14frontplaterunningboard.SLDPRT	47.45K
364	Y-14kleponderrookkastvoetplaat.SLDDRW	370.97K
365	Y-14kleponderrookkastvoetplaat.SLDPRT	94.05K
366	Y-14rearsteplocobody.SLDPRT	46.53K
367	Y-14topfrontsteptender.SLDPRT	128.88K
368	Y-14toprearsteploco.SLDPRT	129.51K
369	Y-14toprearsteptender.SLDPRT	135.56K
370	Y-14Valancerunningboard.DXF	20.80K
371	Y-14Valancerunningboard.SLDPRT	47.80K
372	Y-14wheelarcherighthandfrontinclsandbox.SLDPRT	177.20K
373	Y-14wheelarches.SLDPRT	69.90K
374	Y-14windowframcab.SLDPRT	148.81K
375	Y14boilerband.SLDPRT	67.06K
376	Y14boilerbandconflictedcopy2023-05-12130030.SLDPRT	62.55K
377	Y14cablijstopeningcab.SLDPRT	131.32K
378	Y14frontcab.DXF	21.26K
379	Y14frontcab.SLDPRT	1.11M
380	Y14frontcabconflictedcopy2023-05-15143416.SLDPRT	1.04M
381	Y14frontcab_bottom.DXF	20.87K
382	Y14Roof.SLDPRT	132.44K
383	Y14Zijkantcab.DXF	21.57K
384	Y14Zijkantcablinks.SLDPRT	79.13K
385	Y14Zijkantcabrechts.SLDPRT	82.37K
386	BackupofBackupofT3-Assem1regulator.SLDASM	625.58K
387	BackupofT3-Assem1regulator.SLDASM	626.00K
388	BackupofT3-boltregualtor.SLDPRT	111.70K
389	BackupofT3-pivotboltregualtor.SLDPRT	113.79K
390	BackupofT3-regulatorbody.SLDPRT	202.87K
391	BackupofT3-regulatordisk.SLDPRT	130.00K
392	BackupofT3-regulatorhandel2.SLDASM	76.54K
393	BackupofT3-regulatoronderstebedienhefboom.SLDPRT	78.50K
394	BackupofT3-regulatorspindle.SLDPRT	102.49K
395	BackupofT3-regulatorstang.SLDPRT	45.09K
396	BackupofT3-springregulator.SLDPRT	475.90K
397	BackupofT3-topnutregulator.SLDPRT	84.70K
398	T3-Assem1regulator.SLDASM	644.90K
399	T3-boltregualtor.SLDPRT	113.57K
400	T3-handvatregelaturhandel.SLDDRW	621.50K
401	T3-handvatregelaturhandel.SLDPRT	98.76K
402	T3-pivotboltregualtor.SLDPRT	117.06K
403	T3-regulatorbody.SLDPRT	228.16K
404	T3-regulatordisk.SLDPRT	133.15K
405	T3-regulatorhandel.SLDASM	72.11K
406	T3-regulatorhandel.SLDDRW	319.90K
407	T3-regulatorhandel.SLDPRT	90.18K
408	T3-regulatorhandel2.SLDASM	73.12K
409	T3-regulatoronderstebedienhefboom.SLDPRT	79.13K
410	T3-regulatorringtopbolt.SLDPRT	66.50K
411	T3-regulatorspindle.SLDPRT	103.44K
412	T3-regulatorstang.SLDPRT	46.14K
413	T3-springregulator.SLDPRT	524.99K
414	T3-topnutregulator.SLDPRT	84.39K
415	Backupofsmokeboxassem.SLDASM	460.95K
416	bottomchimney.SLDPRT	161.20K
417	ChimneyAssem2.SLDASM	204.01K
418	Domeoutercasing.SLDPRT	316.97K
419	frontdart.SLDPRT	89.29K
420	frontsmokebox.SLDPRT	81.04K
421	hingepinsmokebox.SLDPRT	71.97K
422	M2modelbouwmoer.SLDPRT	92.10K
423	reardarthandle.SLDPRT	81.88K
424	smokeboxassem.SLDASM	405.98K
425	smokeboxdoor.SLDPRT	264.56K
426	smokeboxrearcrossbar.SLDPRT	87.09K
427	someboxdart.SLDPRT	120.65K
428	vastdeeldoorhinge.SLDPRT	57.70K
429	Y14mantelsmokebox.SLDPRT	106.65K
430	Assem1remhandeltender.SLDASM	139.67K
431	binnenkastintender.SLDPRT	53.45K
432	coalguardplateontopoftender.SLDPRT	60.04K
433	coalplate.SLDPRT	117.33K
434	deurkastinwaterbak.SLDPRT	61.72K
435	draaiknophandbrakeboven.SLDPRT	100.21K
436	endspringcoupler.SLDPRT	123.51K
437	fireironsshieldadded1906.SLDPRT	110.50K
438	framestrechertender.SLDPRT	92.57K
439	frontbufferbeamtender.SLDDRW	329.67K
440	frontbufferbeamtender.SLDPRT	67.28K
441	handbrakepilar.SLDPRT	244.46K
442	innersplasher.SLDPRT	158.53K
443	lampsteuntenderachterzijdeSLDPRT.SLDPRT	107.58K
444	lidtoolbox.SLDPRT	69.05K
445	M2modelmoer.SLDPRT	73.10K
446	Mirrortenderhornblockleft.SLDPRT	92.34K
447	springhangerblock.SLDPRT	105.17K
448	springhangertighbolt.SLDPRT	59.44K
449	staanderailingvoorzijdetender.SLDPRT	155.21K
450	supporttenderbakopbufferbeam.SLDPRT	74.09K
451	supporttenderbakopframeplate.SLDPRT	69.16K
452	tenderaxle.SLDPRT	111.30K
453	tenderaxlebox.SLDPRT	90.34K
454	tenderbottomplate.SLDPRT	124.11K
455	Tenderbufferbeam.SLDDRW	336.62K
456	Tenderbufferbeam.SLDPRT	120.70K
457	Tenderframemetpicopachtergrond.SLDPRT	1.50M
458	tenderhornblockleft.pdf	205.05K
459	tenderhornblockleft.SLDDRW	399.16K
460	tenderhornblockleft.SLDPRT	126.20K
461	tenderhornsassembly.SLDASM	241.55K
462	tenderleafsprings.SLDPRT	173.71K
463	Tenderrearbufferbeam.PDF	83.29K
464	tendertank.SLDPRT	172.34K
465	tendertopplate.SLDPRT	307.14K
466	tenderwelltank.SLDPRT	68.30K
467	tenderwheel.SLDPRT	885.04K
468	tenderwheelset.SLDASM	361.46K
469	Tenderzijframeplaat.SLDDRW	99.33K
470	Tenderzijframeplaat.SLDPRT	92.78K
471	Tenderzijframeplaat.STEP	86.28K
472	Tenderzijframeplaat3mmlasersnijnden.DXF	27.90K
473	toolboxassy.SLDASM	65.93K
474	toolboxbody.SLDPRT	70.39K
475	Y14-Assem1tenderframe.pdf	172.54K
476	Y14-Assem1tenderframe.SLDASM	1.75M
477	Y14-Assem1tenderframe.SLDDRW	951.25K
478	zwaardrailschuiverlinks.SLDPRT	136.92K
479	Assem1mainbearing.SLDASM	121.74K
480	Assem2TenderTOTAAL.SLDASM	1.49M
481	axlebearinglowerpart.SLDPRT	105.26K
482	axlemainbearingblock.SLDPRT	123.55K
483	BackupofAssem1mainbearing.SLDASM	120.83K
484	Backupofcrankaxle.SLDASM	348.58K
485	BackupofdrivingaxleAssemtotaal.SLDASM	629.39K
486	crank.SLDPRT	61.05K
487	crankaxle.SLDASM	365.24K
488	crankshaftwebs6.SLDPRT	65.13K
489	crankshaftwebs8.SLDPRT	65.28K
490	drivingaxle.SLDPRT	76.05K
491	drivingaxleAssemtotaal.SLDASM	629.42K
492	drivingpinwheels.SLDPRT	103.03K
493	drivingwheelY14.pdf	106.59K
494	drivingwheelY14.SLDDRW	1.62M
495	drivingwheelY14.SLDPRT	1.54M
496	keepstripaxlebox.SLDPRT	75.45K
497	setblokvoorvalvetiming.SLDPRT	41.60K
498	tenderaxle.SLDPRT	78.47K
499	viltinlayaxleboxasoilfilter.SLDPRT	262.64K
500	wheelset.SLDASM	541.84K
501	Assem1frameY14in5inch.SLDASM	2.45M
502	Assem1frameY14in5inch.SLDDRW	5.95M
503	Mainframeplate5inch.SLDPRT	141.32K
504	TOTAALAssemY14in5inch.SLDASM	3.22M
505	TOTAALAssemY14in5inch2Dtek.SLDDRW	9.62M
506	TOTAALCompletelocoandtenderassembly.SLDASM	3.59M
507	TOTAALCompletelocoandtenderassembly.SLDDRW	22.35M
508	Assem1brakehangerandsupportplate.SLDASM	135.70K
509	Assem1brakehangerconnectionplate.SLDASM	59.91K
510	brakeblockloco.SLDPRT	103.96K
511	brakehangerloco.SLDPRT	60.70K
512	brakehangerlug.SLDPRT	78.64K
513	connectionplatebetweenhangers.SLDPRT	54.56K
514	kopvanconcectionplatebetweenhangers.SLDPRT	78.26K
515	Mirrorbrakeblockloco.SLDPRT	89.27K
516	capcrossheadoilresevoir.SLDPRT	85.47K
517	crosshead.SLDPRT	217.44K
518	crossheadpumpattachmentplate.SLDPRT	119.88K
519	crossheadtopplate.SLDPRT	126.38K
520	cylinder.SLDPRT	432.59K
521	CylinderAssem1.SLDASM	260.03K
522	frontcylindercover.SLDPRT	118.03K
523	hartlijnpinvooruitlijning.SLDPRT	38.82K
524	M3moer.SLDPRT	90.34K
525	piston.SLDPRT	85.08K
526	pistoncrossheadpump.SLDPRT	60.44K
527	pistonringTeflon.SLDPRT	78.45K
528	pistonrod.SLDPRT	63.98K
529	Pistonrodandcrossheadassembly.SLDASM	124.74K
530	rearcylindercover.SLDPRT	160.72K
531	schuifkastmidden.SLDPRT	195.25K
532	slidebar.SLDPRT	97.42K
533	steamvalvebakschuif.SLDPRT	89.77K
534	valvebuckle.SLDPRT	113.66K
535	valvespindlegland.SLDPRT	97.88K
536	Assywatercrossheadpump.SLDASM	141.32K
537	banjocrossheadpumptop.SLDPRT	123.16K
538	bodycrossheadpump.SLDPRT	225.08K
539	turretbanjobolttop.SLDPRT	70.41K
540	Assem1hornblocksloco.SLDASM	140.68K
541	Assem1hornblockslocofrontleftwithcutout.SLDASM	205.20K
542	Assem1hornblockslocofrontrightwithcutout.SLDASM	203.44K
543	boilercladding.SLDPRT	189.39K
544	bufferassembly.SLDASM	160.38K
545	bufferassembly.SLDDRW	542.32K
546	bufferbeam.SLDDRW	127.04K
547	bufferbeam.SLDPRT	104.17K
548	bufferbeamanglebracket.SLDPRT	95.32K
549	bufferhead.SLDPRT	133.88K
550	bufferstock.SLDPRT	138.88K
551	chimneytop.SLDPRT	121.13K
552	connectingpin.SLDPRT	90.41K
553	couplingplaterearloco.SLDPRT	83.41K
554	couplingplaterearlocolongversion.SLDPRT	99.69K
555	drawbarloco-tender.SLDPRT	142.50K
556	externalfrontsupportplatebufferbeam.SLDPRT	112.22K
557	externalrearsupportplatedragbeamloco.SLDPRT	162.24K
558	frontsupportplatebufferbeamAssy.SLDASM	61.80K
559	guardironrail.SLDPRT	123.40K
560	handrailboiler.SLDPRT	44.84K
561	hornblock.SLDDRW	391.93K
562	hornblock.SLDPRT	124.70K
563	hornblockandaxleboxassembly.SLDASM	125.98K
564	Mainframeplate5inch.SLDDRW	126.12K
565	middlestretcher.SLDPRT	60.70K
566	Mirrorexternalfrontsupportplatebufferbeam.SLDPRT	65.44K
567	motionplate.SLDDRW	97.13K
568	motionplate.SLDPRT	131.69K
569	rearbufferbeamengine.SLDDRW	336.77K
570	rearbufferbeamengine.SLDPRT	88.95K
571	rearleftbufferbeamanglebracket.SLDPRT	77.34K
572	rearrightbufferbeamanglebracket.SLDPRT	96.82K
573	tophornblocks.SLDPRT	82.31K
574	Assem1eccentricbottombackwardsleft.SLDASM	101.61K
575	Assem1eccentrictopforwardleft.SLDASM	96.17K
576	conceptbigendbearing.SLDPRT	144.70K
577	Dieblock.SLDPRT	71.59K
578	drijfstangassembly.SLDASM	113.61K
579	Drijfstangconnectingrod.SLDPRT	186.62K
580	eccententric.SLDPRT	110.74K
581	eccententricstrapconnectingrod.SLDPRT	133.66K
582	eccententricstraps.SLDPRT	147.58K
583	expansionlink.SLDPRT	138.60K
584	frontandrearbearingbush.SLDPRT	66.07K
585	liftingarmhorizontal.SLDPRT	93.28K
586	liftingarmhorizontalweighshaft.SLDPRT	107.87K
587	liftinglink.SLDPRT	78.44K
588	littleendbearingbush.SLDPRT	87.90K
589	valvespindle.SLDPRT	67.30K
590	valvespindleguideblock.SLDPRT	98.25K
591	valvespindleguiderodrond12.SLDPRT	205.97K
592	Weighshaftrod.SLDPRT	53.59K
593	Y14-Assem1connectingrods.SLDASM	74.88K
594	Y14frontconnectingrod.SLDPRT	157.32K
595	Y14rearconnectingrod.SLDPRT	203.54K
596	cabassy.SLDASM	229.41K
597	cabfloor.SLDPRT	51.33K
598	footplateextentsion.SLDASM	223.55K
599	frontsplashers.SLDASM	92.95K
600	handrailknob.SLDPRT	107.49K
601	handrailknobshort.SLDPRT	126.10K
602	handrailzijkantcab.SLDPRT	52.48K
603	Mirrorrunningboardsupport.SLDPRT	132.77K
604	Mirrorsteunvoetplaatextentsieloc.SLDPRT	40.79K
605	MirrorY-14wheelarcherighthandfrontinclsandbox.SLDPRT	99.28K
606	runningboard.SLDPRT	54.49K
607	runningboardsupport.SLDPRT	147.41K
608	safetyvalvebasecover.SLDPRT	243.52K
609	smokeboxbrassring.SLDPRT	72.43K
610	steunvoetplaatextentsieloc.SLDPRT	52.06K
611	topwoodcabfloor.SLDPRT	247.90K
612	Y-14bottomfrontsteptender.SLDPRT	121.69K
613	Y-14bottomrearsteploco.SLDPRT	123.88K
614	Y-14bottomrearsteptender.SLDPRT	122.32K
615	Y-14frontplaterunningboard.SLDPRT	44.92K
616	Y-14kleponderrookkastvoetplaat.SLDPRT	77.37K
617	Y-14rearsteplocobody.SLDPRT	43.92K
618	Y-14topfrontsteptender.SLDPRT	123.34K
619	Y-14toprearsteploco.SLDPRT	124.04K
620	Y-14toprearsteptender.SLDPRT	129.24K
621	Y-14Valancerunningboard.SLDPRT	46.39K
622	Y-14wheelarcherighthandfrontinclsandbox.SLDPRT	93.17K
623	Y-14wheelarches.SLDPRT	55.62K
624	Y-14windowframcab.SLDPRT	136.67K
625	Y14boilerband.SLDPRT	61.27K
626	Y14cablijstopeningcab.SLDPRT	115.09K
627	Y14frontcab.SLDPRT	1.02M
628	Y14Roof.SLDPRT	62.04K
629	Y14Zijkantcablinks.SLDPRT	71.87K
630	Y14Zijkantcabrechts.SLDPRT	75.97K
631	bottomchimney.SLDPRT	158.59K
632	ChimneyAssem2.SLDASM	199.11K
633	Domeoutercasing.SLDPRT	315.02K
634	frontsmokebox.SLDPRT	89.10K
635	smokeboxassem.SLDASM	242.47K
636	smokeboxdoor.SLDPRT	103.60K
637	Y14mantelsmokebox.SLDPRT	97.52K
638	coalplate.SLDPRT	113.32K
639	framestrechertender.SLDPRT	88.11K
640	frontbufferbeamtender.SLDDRW	329.45K
641	frontbufferbeamtender.SLDPRT	63.64K
642	Mirrortenderhornblockleft.SLDPRT	80.28K
643	tenderaxle.SLDPRT	79.89K
644	tenderaxlebox.SLDPRT	86.27K
645	tenderbottomplate.SLDPRT	68.58K
646	Tenderbufferbeam.SLDDRW	331.48K
647	Tenderbufferbeam.SLDPRT	96.34K
648	tenderhornblockleft.SLDDRW	355.37K
649	tenderhornblockleft.SLDPRT	99.18K
650	tenderhornsassembly.SLDASM	74.97K
651	tenderleafsprings.SLDPRT	140.82K
652	tendertank.SLDPRT	143.55K
653	tendertopplate.SLDPRT	176.37K
654	tenderwelltank.SLDPRT	62.38K
655	tenderwheel.SLDPRT	573.35K
656	tenderwheelset.SLDASM	355.35K
657	Tenderzijframeplaat.SLDDRW	100.60K
658	Tenderzijframeplaat.SLDPRT	87.96K
659	Y14-Assem1tenderframe.SLDASM	1.10M
660	Y14-Assem1tenderframe.SLDDRW	951.95K
661	Assem1mainbearing.SLDASM	67.47K
662	Assem2TenderTOTAAL.SLDASM	1.11M
663	axlebearinglowerpart.SLDPRT	79.70K
664	axlemainbearingblock.SLDPRT	106.32K
665	crank.SLDPRT	60.00K
666	crankaxle.SLDASM	242.08K
667	crankshaftwebs6.SLDPRT	63.14K
668	crankshaftwebs8.SLDPRT	63.48K
669	drivingaxle.SLDPRT	73.33K
670	drivingaxleAssemtotaal.SLDASM	621.86K
671	drivingpinwheels.SLDPRT	99.41K
672	drivingwheelY14.SLDPRT	874.22K
673	keepstripaxlebox.SLDPRT	79.15K
674	wheelset.SLDASM	538.83K
675	Y14-backhead.SLDPRT	140.64K
676	Y14-boilerfrontsmokebox.SLDPRT	159.38K
677	Y14-boilerinnerfireboxandtubesltotaal.SLDASM	287.30K
678	Y14-boileroutershelltotaal.SLDASM	300.71K
679	Y14-boilershell.SLDPRT	95.39K
680	Y14-boilertotaal.SLDASM	469.29K
681	Y14-boilertotaal.SLDDRW	1.05M
682	Y14-domeringboilershell.SLDPRT	131.36K
683	Y14-fireboxinnerbackplate3mmb.SLDPRT	156.57K
684	Y14-fireboxouteshell.SLDPRT	89.08K
685	Y14-fireboxtubeplate3mm.SLDDRW	417.03K
686	Y14-fireboxtubeplate3mm.SLDPRT	213.07K
687	Y14-fireboxwrapper25mm.SLDPRT	145.07K
688	Y14-firedoorring.SLDPRT	112.76K
689	Y14-firetube.SLDPRT	73.93K
690	Y14-innerdomecasing.SLDPRT	195.15K
691	Y14-throatplate.SLDPRT	168.62K
692	Y14vuurkistraam.SLDPRT	51.36K

机械资料库

工程师必备！

蒸汽机车发动机模型

机械资料库

机械面试题库—工程师月薪过万的秘籍

机械图纸下载—海量图纸助力设计创新

设计资料库—海量资料简化设计
