麦轮AGV小车

首页 >图纸库>交通运输>其他2025-08-07报告错误错误问题可与客服联系，感谢您的支持！[获取免费下载]分享好友可以免费下载哦！1

图纸描述

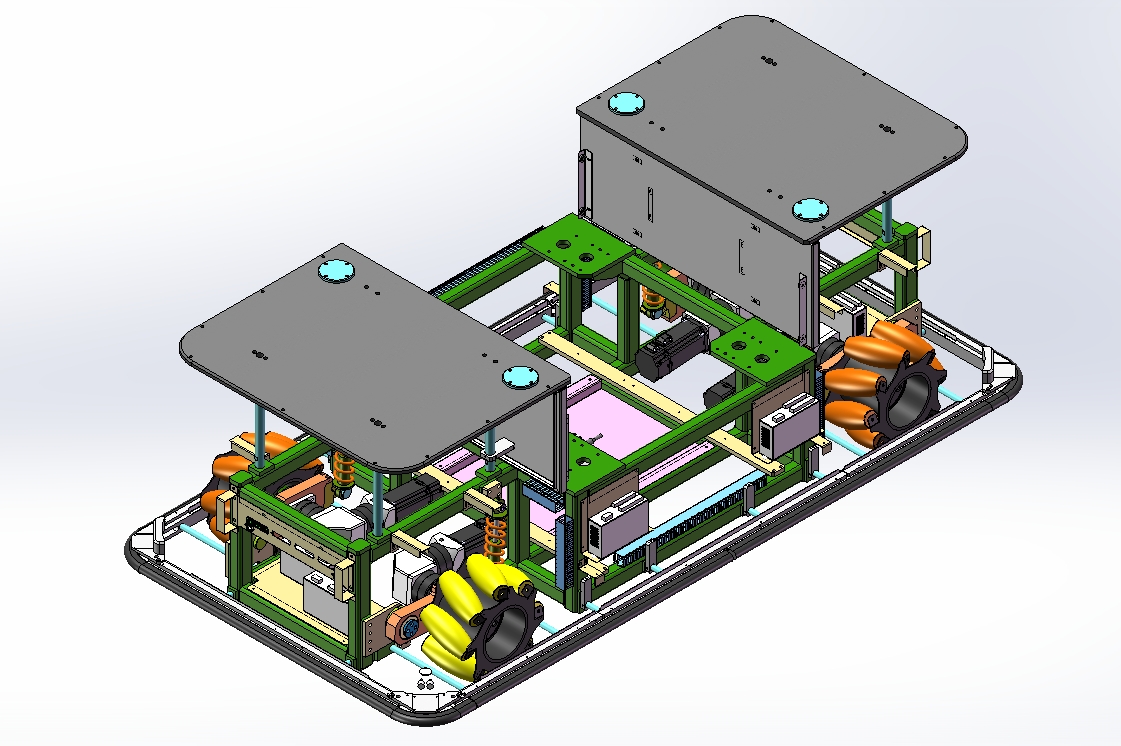

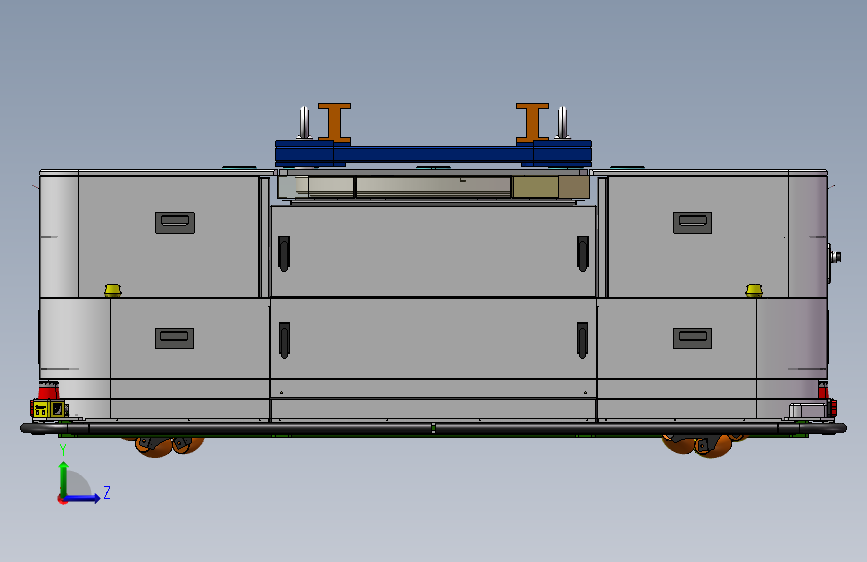

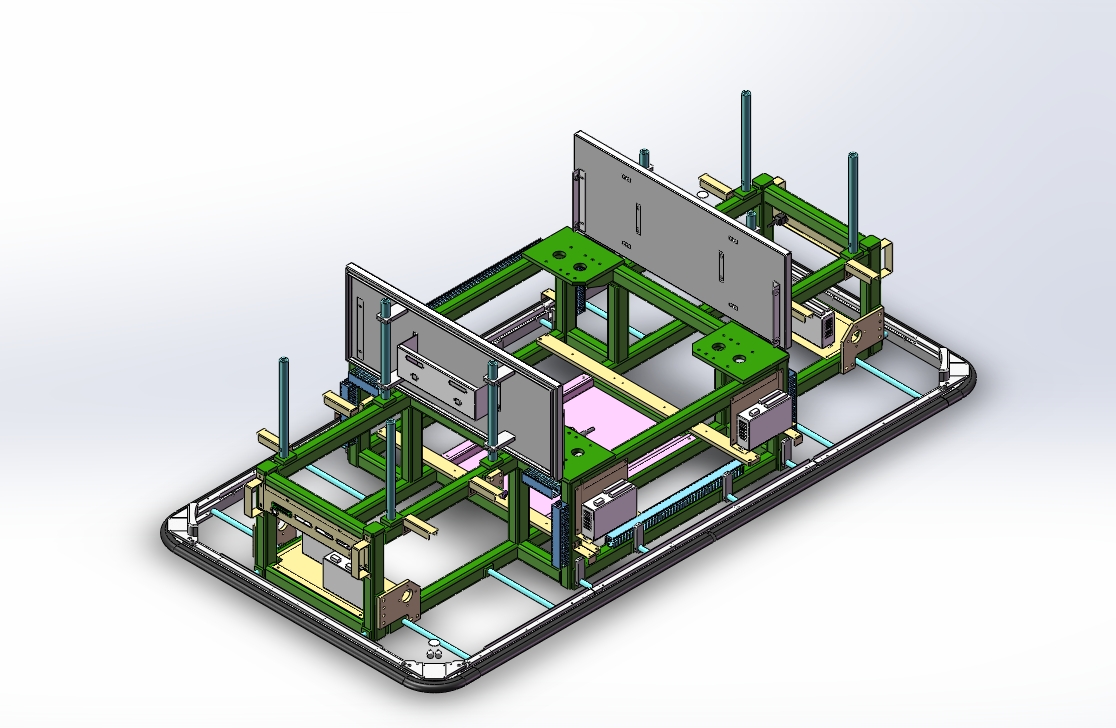

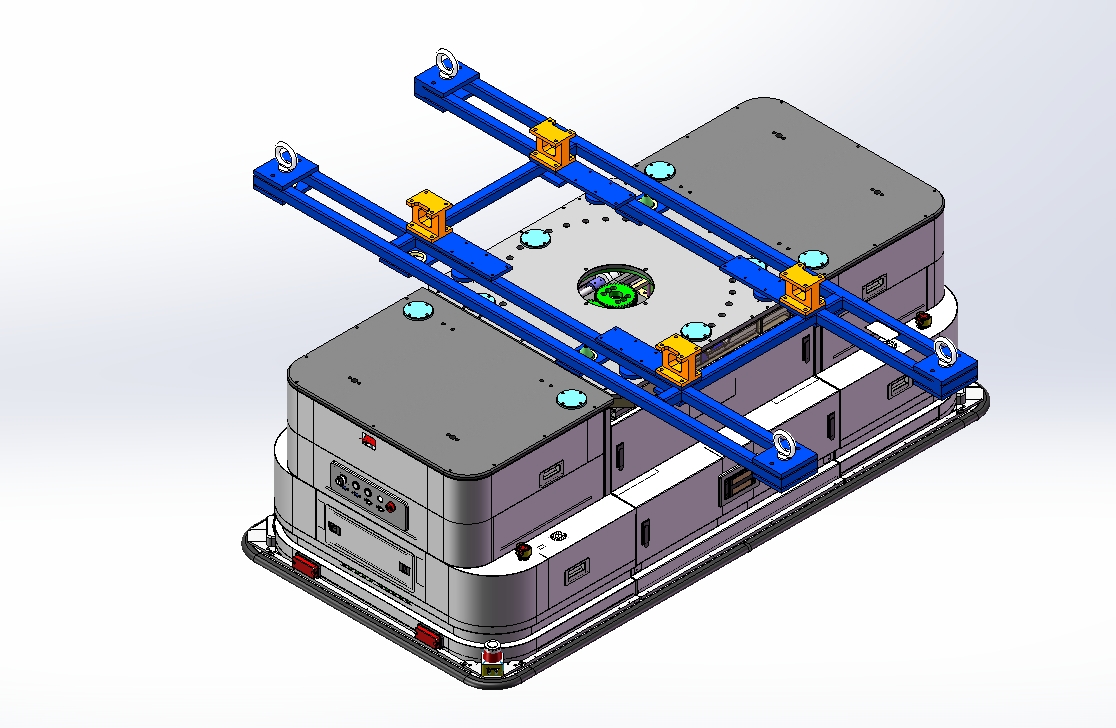

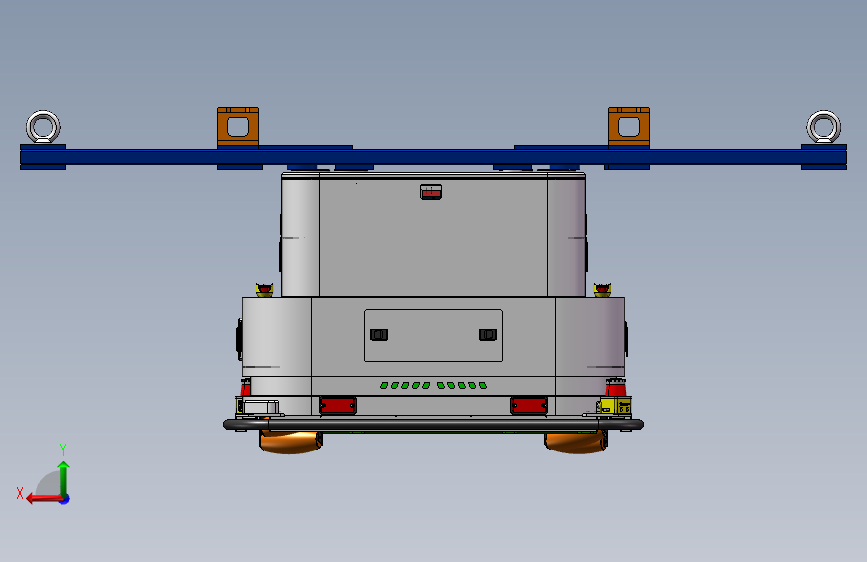

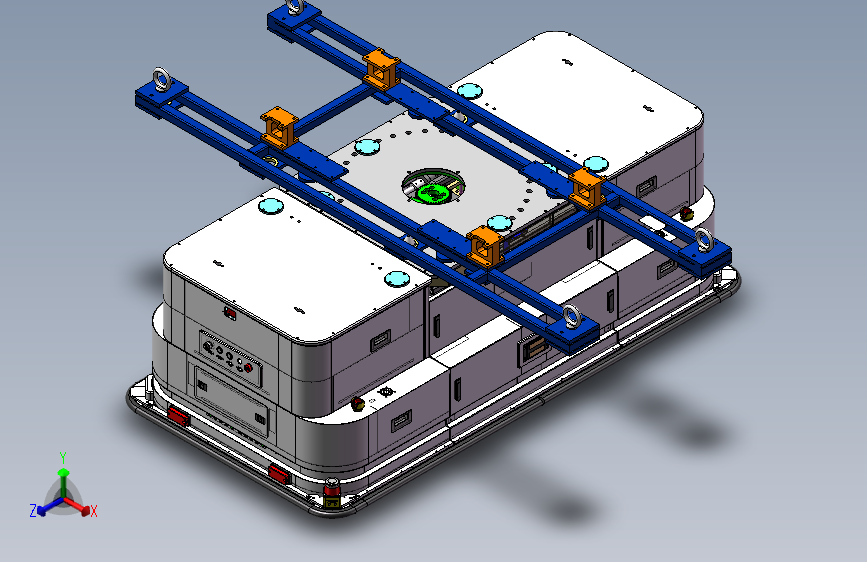

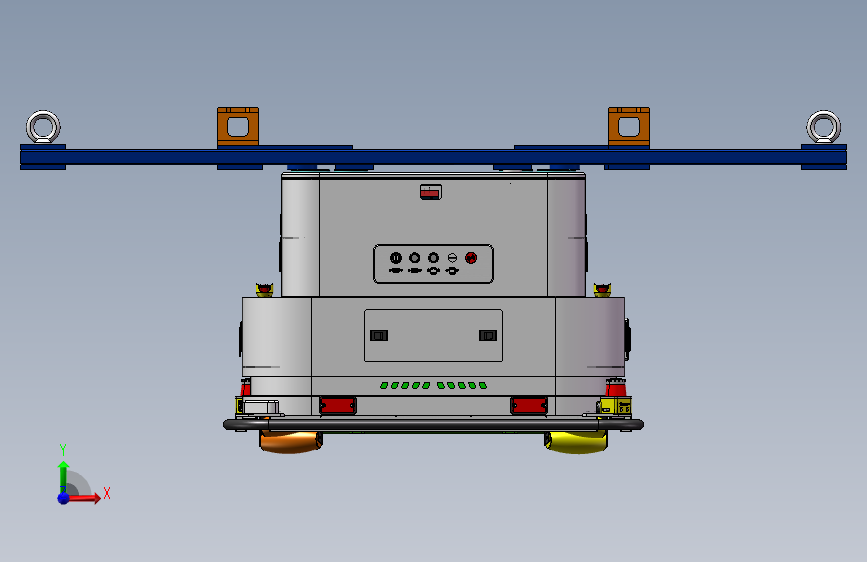

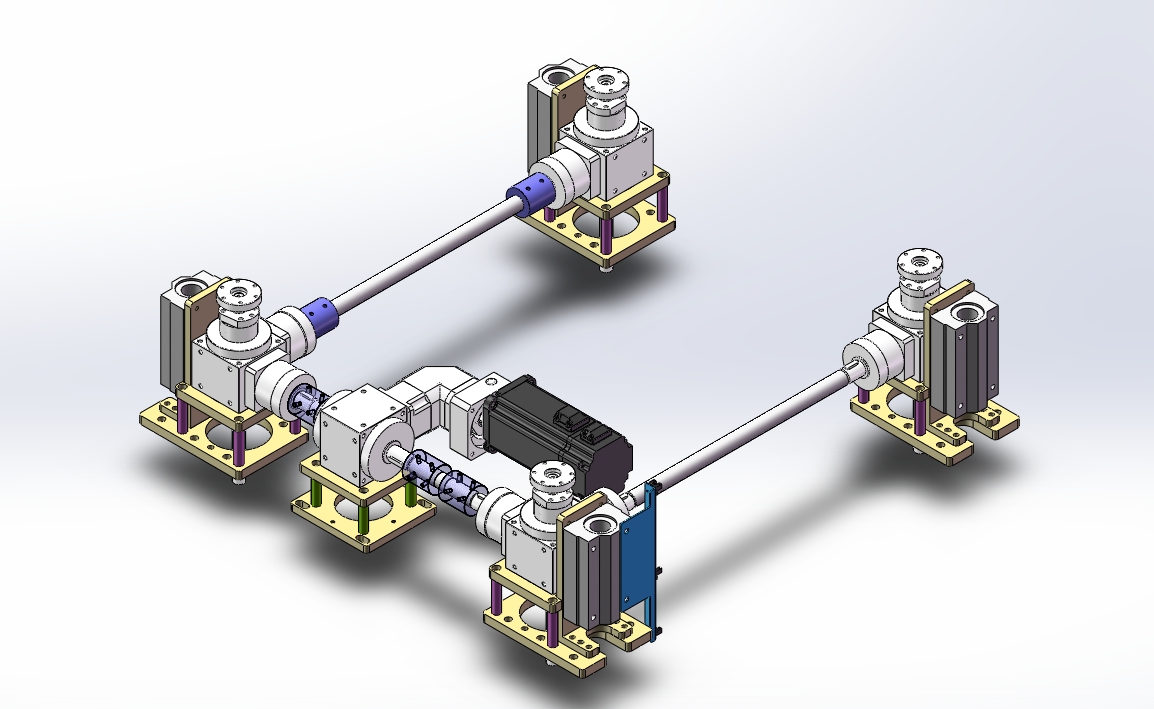

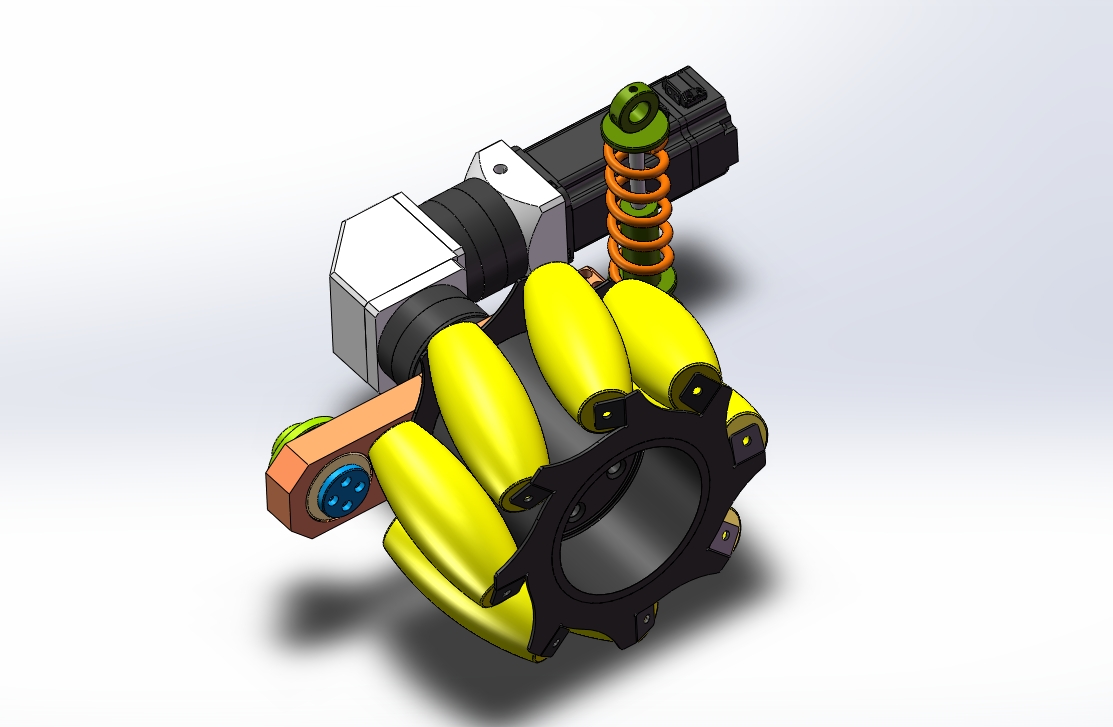

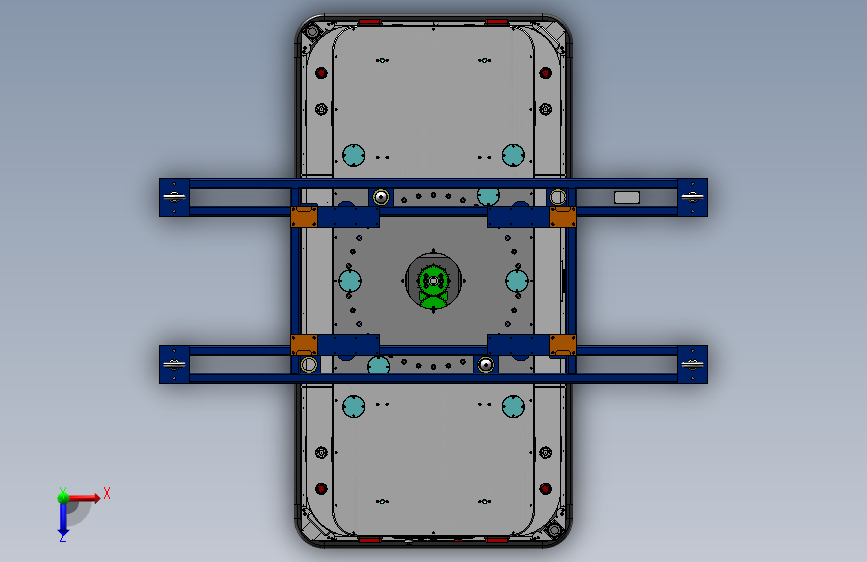

麦轮AGV小车图纸下载，该图纸类型属于交通运输、其他图纸，图纸大小235.32M，共计527个文件，包含3D图纸，图纸主格式为stp,sldprt,sldasm，使用SOLIDWORKS 2022软件制作，可编辑包含特征参数，该机械图纸可直接下载使用，可供设计参考。

下载需要32金币推广可免费下载

立即下载收藏

图纸信息

图纸ID ：438072

文件大小：235.32M

所需金币：32

图纸参数：可编辑，包含特征参数

图纸分类：交通运输

图纸格式：stp,sldprt,sldasm

软件版本：SOLIDWORKS 2022

作者

模具小王

已分享: 份作品

关注

咨询

文件列表

#	文件名称	大小
1	zpt1.stp	108.95M
2	-X模块停放支撑台.SLDPRT	1.19M
3	-Y舱板保持架.SLDPRT	852.78K
4	-Z舱板保持架（焊件）.SLDPRT	1.33M
5	0413708_2.sldprt	36.44K
6	0413709_4.sldprt	34.91K
7	0413711_2.sldprt	58.91K
8	041371200AF7_ASM_2_ASM.sldasm	29.78K
9	041371201AF6_2.sldprt	18.34K
10	0413713_2.sldprt	42.48K
11	0430794_2.sldprt	206.13K
12	043079500A50_1.sldprt	190.55K
13	0431178_ASM_1_ASM.sldasm	34.04K
14	060.20.0644].sldprt	348.76K
15	060.20.0644回转支撑.SLDPRT	369.93K
16	0802AS-H（16-5-260L）减速机.SLDPRT	746.48K
17	0802AS-H（16-5-260L）换向器.SLDPRT	668.62K
18	080AS-F（16-5-260L）减速机.SLDPRT	708.55K
19	080AS-F（16-5-260L）换向器.SLDPRT	503.44K
20	080AS-H减速机.SLDPRT	760.40K
21	080AS-H换向器.SLDPRT	517.81K
22	150BX-161k_X2_8F74_X0_A19H26.sldprt	43.08K
23	150BX-81-REA-19-7090RV减速机.SLDASM	1.42M
24	150BX-OP-57.sldprt	317.44K
25	150BX_X2_8F9351656CD55170_X0_-161k-57_X2_53E3_X0_.sldprt	355.16K
26	20x5强磁铁.SLDPRT	83.03K
27	260-0000减震器.SLDPRT	777.71K
28	260-0000减震器（压缩）.SLDPRT	678.28K
29	2EDGWC5.08母头.SLDPRT	594.14K
30	32-刚性联轴器.sldprt	25.75K
31	32-大垫圈20.sldprt	18.48K
32	32-导轨限位块M12.sldprt	18.54K
33	32-推力轴承座.sldprt	22.14K
34	32-旋转部分.sldasm	39.98K
35	32-旋转部分_2.sldasm	41.26K
36	32-电机安装座.sldprt	24.83K
37	32-竖直升降装置.sldasm	42.95K
38	32-竖直升降装置2.sldasm	43.97K
39	32-螺杆夹紧座.sldprt	30.28K
40	32-螺母座.sldprt	28.72K
41	34.5cmLED灯条.SLDPRT	222.80K
42	4点支撑-5U-RF-SG1610-L120--1.SLDASM	1.13M
43	50A刷板.SLDPRT	134.72K
44	7075铝传动轴.SLDPRT	86.00K
45	7075铝传动轴2.SLDPRT	86.38K
46	A30转向灯.SLDPRT	177.08K
47	APT蜂鸣器AD16-22SM.sldprt	232.99K
48	B608F交换机.SLDPRT	740.63K
49	BallScrew_2031.sldasm	29.20K
50	BallScrew_2031^BallScrew_2031.sldasm	31.22K
51	BallScrew_2031^BallScrew_2031_2.sldasm	30.44K
52	BallScrew_2031_2.sldasm	29.65K
53	BASE_1.sldprt	70.84K
54	BFN11_d25.sldasm	29.04K
55	BFN11_d25_2.sldasm	29.12K
56	BFN11_d25_3.sldprt	38.67K
57	BFN11_d25_5.sldprt	27.61K
58	BH-6PE保险丝盒.SLDPRT	354.54K
59	BITO-IPCG2.0工控机宾通.SLDPRT	2.64M
60	BNK01-GE20E关节轴承怡合达.SLDPRT	244.85K
61	C65N-DCC10A空开施耐德.SLDPRT	751.83K
62	C65N-DCC50A空开施耐德.SLDPRT	1.06M
63	CBK01-40-P脚轮怡合达.SLDPRT	234.12K
64	CDM3-63S1032德力西塑壳断路器.SLDPRT	627.51K
65	chetouzujian.SLDASM	7.05M
66	cheweiwaikezu.SLDASM	6.50M
67	CMA31右旋成都航发.SLDPRT	848.76K
68	CMA31左旋成都航发.SLDPRT	856.43K
69	COMPRESSD_2.sldprt	77.50K
70	COMPRESSED_2.sldprt	78.08K
71	D50定位销-副本.SLDPRT	123.60K
72	D50定位销.sldprt	151.32K
73	DCK21_D55_d16_e19.sldasm	29.62K
74	DCK21_D55_d16_e19_2.sldasm	30.52K
75	DCK21_D55_d16_e19_3.sldasm	30.05K
76	DCK21_D55_d16_e19_3.sldprt	80.00K
77	DCK21_D55_d16_e19_4.sldasm	29.42K
78	DCK21_D55_d16_e19_5.sldprt	35.24K
79	DCK21_D55_d16_e19_7.sldprt	34.62K
80	DEV01-D40-d20-e20联轴器怡合达.SLDPRT	149.20K
81	dianchizu.SLDASM	1.57M
82	dianyuanmokuai.SLDASM	1.31M
83	dijiazu.SLDASM	6.32M
84	dingshengzu.SLDASM	4.01M
85	E2B-S08KS01-WP-C12M接近传感器欧姆龙.SLDPRT	124.16K
86	EE-SX951-W光电传感器欧姆龙.SLDPRT	107.58K
87	EE_SX675-WR欧姆龙.sldprt	66.15K
88	FAF41-D25-B12夹紧环怡合达.sldprt	144.56K
89	FAJ56-D25-B15抱箍怡合达.SLDPRT	122.81K
90	FPGA-080-L2精密行星减速机[FPGA080-25]_FPGA080-25.sldprt	423.25K
91	GB╱T2673.1-2018[内六角花形沉头螺钉M2-M4M4×8].sldprt	138.70K
92	GB╱T276-2013[两面带防尘盖的深沟球轴承[60000-2Z]61907-2Z].sldprt	1.86M
93	GB╱T296-2015[双列角接触球轴承3207A-2RS.sldprt	449.52K
94	GB╱T41-2016[1型六角螺母C级M30]_M30.sldprt	28.14K
95	GB╱T70.1-2008[内六角圆柱头螺钉M10×35]_M10×35.sldprt	24.59K
96	GB╱T70.1-2008[内六角圆柱头螺钉M12×30]_M12×30.sldprt	26.69K
97	GB╱T70.1-2008[内六角圆柱头螺钉M12×40]_M12×40.sldprt	26.00K
98	GB╱T70.1-2008[内六角圆柱头螺钉M16×80]_M16×80.sldprt	26.50K
99	GB╱T70.1-2008[内六角圆柱头螺钉M4×20]_M4×20.sldprt	24.38K
100	GB╱T70.1-2008[内六角圆柱头螺钉M8×20]_M8×20.sldprt	24.83K
101	GB╱T70.1-2008[内六角圆柱头螺钉M8×25]_M8×25.sldprt	24.53K
102	GB╱T80-2007[内六角凹端紧定螺钉M4×8]_M4×8.sldprt	25.37K
103	GB╱T812-1988[圆螺母M30×1.5].sldprt	126.24K
104	GB╱T825-1988[吊环螺钉M12].sldprt	312.00K
105	GB╱T825-1988[吊环螺钉M16].sldprt	345.23K
106	GB╱T894-2017[轴用弹性挡圈A型d0≥1012].sldprt	102.55K
107	GB╱T894-2017[轴用弹性挡圈A型d0≥1025].sldprt	23.83K
108	GB╱T93-1987[标准型弹性垫圈装配8]_8.sldprt	20.21K
109	GTE10-N1221漫反射传感器SICK.SLDPRT	1.01M
110	HAB090-5-P2_Φ19×36／Φ70×3／4-Φ90-M6（速比5）_默认_按加工_.sldprt	386.36K
111	HAJ26_M4_L25_E.sldprt	32.38K
112	HAL56_D203.sldprt	34.28K
113	HAT11-M6-L30旋钮怡合达.SLDPRT	71.31K
114	hexagonsocketheadcapscrewsgb_GB_FASTENER_SCREWS_HSHCSM10X65-N.sldprt	25.96K
115	HFE80V-60直流继电器.SLDPRT	281.42K
116	HFE82V-200B750-24-HC5电机接触器.SLDPRT	1018.12K
117	HFQ81-28搭扣怡合达.SLDPRT	144.32K
118	HG-KN73J-S100.sldprt	78.20K
119	HGH30CA-1960导轨_HGH30CA.sldprt	102.02K
120	HGH30CA-2200导轨_HGH30CA.sldprt	104.26K
121	HGH30CA-滑块_HGH30CA.sldprt	86.48K
122	IDB11-660.SLDASM	109.25K
123	IMU惯性导航传感器.sldprt	154.46K
124	JWM050DR梯形丝杆型升降机[JWM050DR-H1200]_JWM050DR-H1200.sldasm	30.29K
125	JWM050DR梯形丝杆型升降机[JWM050DR-H1200]_JWM050DR-H1200_2.sldasm	30.69K
126	JWM050DR梯形丝杆型升降机[JWM050DR-H1200]_活动螺母_SWL2.5.sldprt	20.41K
127	JWM050DR梯形丝杆型升降机[JWM050DR-H1200]_箱体_JWM050箱体.sldprt	468.38K
128	JWM050DR梯形丝杆型升降机[JWM050DR-H1200]_螺杆_JWM050螺杆.sldprt	19.34K
129	KL-5线卡.SLDPRT	195.88K
130	kongzhimukuai.SLDASM	2.13M
131	LEB41_25.sldprt	79.22K
132	LEB51_25.sldprt	26.53K
133	LJR73_d32.sldprt	24.65K
134	LKC31_6.sldprt	35.41K
135	LOGO-4.sldprt	376.35K
136	LOGO-5-YHHT1.sldprt	375.53K
137	M16弹平垫螺母组合.sldprt	36.85K
138	MecanumWheelAGV.SLDASM	36.74M
139	MS717平面锁.SLDPRT	156.70K
140	MS717平面锁2.SLDPRT	179.33K
141	MTSTRK32-1200-F35-R25-T35-Q25-S100-E22.sldprt	30.83K
142	NHC11_L700_X25_W320_H69.sldprt	2.44M
143	NHV7S-200A熔断器.SLDPRT	101.92K
144	nut2^BallScrew_2031_BallScrew_2031.sldprt	18.88K
145	nut_12^BallScrew_2031_BallScrew_2031.sldprt	20.40K
146	nut_mark2^BallScrew_2031_BallScrew_2031.sldprt	28.84K
147	OFP01-d35-L15无油衬套.SLDPRT	167.81K
148	PHFZ060-L1-19-70-90-M5.sldprt	264.82K
149	PHFZ060-L1-19-70-90-M5减速机.SLDPRT	919.84K
150	PHFZ060-L2-19-70-90-M5减速机.SLDPRT	930.22K
151	QH51.2V80AH0652锂电池.SLDPRT	726.04K
152	qudongzu.SLDASM	4.83M
153	qudongzu2.SLDASM	4.93M
154	R2轴焊接架2_默认_按焊接_.sldprt	134.80K
155	R2轴焊接架_2_按焊接_.sldprt	135.59K
156	R3051MG010二维码相机大华.SLDPRT	2.13M
157	R3轴机架_默认_按加工_.sldprt	105.17K
158	RDB02-D10固定夹怡合达.SLDPRT	180.13K
159	RT080BS-002-2AX-L.sldprt	103.48K
160	RT080BS-002-2AX-R.sldprt	93.91K
161	RT080BS-002-RF-L.sldprt	84.38K
162	RT080BS-002-RF-R.sldprt	84.71K
163	RXW080AS-L1-2P-.sldprt	80.68K
164	RXZE1M4C继电器施耐德.SLDPRT	327.86K
165	R型开口销8.SLDPRT	139.42K
166	SCD01-D10-L120-M5导向轴怡合达.SLDPRT	59.88K
167	SCD51-D25-L440-M8光轴怡合达.SLDPRT	79.82K
168	SCJ01-D12-L70-M6-N6-LC导向轴怡合达.SLDPRT	67.11K
169	SCJ01-D12-L73-M6-N6-LC导向轴怡合达.SLDPRT	67.67K
170	screw06162^BallScrew_2031_BallScrew_2031.sldprt	18.06K
171	SCREW_MIG02_ASM_2_ASM.sldasm	29.43K
172	SCS25LUU直线轴承.SLDPRT	173.06K
173	SDGA-10C22BD1000W带刹车富士.SLDPRT	3.96M
174	SE9A-61-25R-REV.C.sldasm	31.24K
175	SE9A-61-25R-REV.C10^SE9A-61-25R-REV.C2_SE9A-61-25R-REV.C.sldprt	30.33K
176	SE9A-61-25R-REV.C11^SE9A-61-25R-REV.C2_SE9A-61-25R-REV.C.sldprt	44.37K
177	SE9A-61-25R-REV.C12^SE9A-61-25R-REV.C2_SE9A-61-25R-REV.C.sldprt	22.24K
178	SE9A-61-25R-REV.C13^SE9A-61-25R-REV.C2_SE9A-61-25R-REV.C.sldprt	21.39K
179	SE9A-61-25R-REV.C14^SE9A-61-25R-REV.C2_SE9A-61-25R-REV.C.sldprt	23.98K
180	SE9A-61-25R-REV.C15^SE9A-61-25R-REV.C2_SE9A-61-25R-REV.C.sldprt	46.07K
181	SE9A-61-25R-REV.C16^SE9A-61-25R-REV.C2_SE9A-61-25R-REV.C.sldprt	188.41K
182	SE9A-61-25R-REV.C17^SE9A-61-25R-REV.C2_SE9A-61-25R-REV.C.sldprt	21.23K
183	SE9A-61-25R-REV.C18^SE9A-61-25R-REV.C2_SE9A-61-25R-REV.C.sldprt	22.65K
184	SE9A-61-25R-REV.C19^SE9A-61-25R-REV.C2_SE9A-61-25R-REV.C.sldprt	18.86K
185	SE9A-61-25R-REV.C1^SE9A-61-25R-REV.C2_SE9A-61-25R-REV.C.sldprt	47.31K
186	SE9A-61-25R-REV.C20^SE9A-61-25R-REV.C2_SE9A-61-25R-REV.C.sldprt	21.18K
187	SE9A-61-25R-REV.C21^SE9A-61-25R-REV.C2_SE9A-61-25R-REV.C.sldprt	21.33K
188	SE9A-61-25R-REV.C22^SE9A-61-25R-REV.C2_SE9A-61-25R-REV.C.sldprt	20.55K
189	SE9A-61-25R-REV.C23^SE9A-61-25R-REV.C2_SE9A-61-25R-REV.C.sldprt	31.59K
190	SE9A-61-25R-REV.C24^SE9A-61-25R-REV.C2_SE9A-61-25R-REV.C.sldprt	21.56K
191	SE9A-61-25R-REV.C2^SE9A-61-25R-REV.C.sldasm	35.28K
192	SE9A-61-25R-REV.C2^SE9A-61-25R-REV.C2_SE9A-61-25R-REV.C.sldprt	19.38K
193	SE9A-61-25R-REV.C2^SE9A-61-25R-REV.C_2.sldasm	36.31K
194	SE9A-61-25R-REV.C3^SE9A-61-25R-REV.C2_SE9A-61-25R-REV.C.sldprt	20.75K
195	SE9A-61-25R-REV.C4^SE9A-61-25R-REV.C2_SE9A-61-25R-REV.C.sldprt	21.57K
196	SE9A-61-25R-REV.C5^SE9A-61-25R-REV.C2_SE9A-61-25R-REV.C.sldprt	23.45K
197	SE9A-61-25R-REV.C6^SE9A-61-25R-REV.C2_SE9A-61-25R-REV.C.sldprt	23.24K
198	SE9A-61-25R-REV.C7^SE9A-61-25R-REV.C2_SE9A-61-25R-REV.C.sldprt	21.84K
199	SE9A-61-25R-REV.C8^SE9A-61-25R-REV.C2_SE9A-61-25R-REV.C.sldprt	20.82K
200	SE9A-61-25R-REV.C9^SE9A-61-25R-REV.C2_SE9A-61-25R-REV.C.sldprt	21.78K
201	SE9A-61-25R-REV.C_2.sldasm	30.76K
202	SENA3.sldprt	34.64K
203	sg-1610-250.sldprt	33.09K
204	SGH01-D16-L265-E10-M8-N5导向轴怡合达.SLDPRT	113.39K
205	SGH01-D16-L29-E10-M8-N5导向轴怡合达.SLDPRT	114.59K
206	SGH01-D16-L65-E10-M8-N5导向轴怡合达.SLDPRT	122.49K
207	SGH31-D15-L30-E10-M8-N5-LC导向轴怡合达.SLDPRT	120.62K
208	SGJ01-D25-L320-E15-M16-N16-S22-LC导向轴怡合达.SLDPRT	103.64K
209	sgmav_08a_a6c_base.step.sldprt	194.48K
210	sgmav_08a_a6c_key.step.sldprt	19.63K
211	ST-35触边条01.SLDASM	62.70K
212	ST-35触边条02.SLDASM	125.27K
213	ST-45安装座1-副本-副本.SLDPRT	138.18K
214	ST-45安装座1.SLDPRT	83.83K
215	SWITCHING_OFF_BIG_SPRING_AF0_1.sldprt	69.25K
216	SWITCHING_OFF_HEAD_1.sldprt	833.56K
217	SWITCHING_OFF_OUTER_SEAL_1.sldprt	17.13K
218	SWITCHING_OFF_PLATE_1.sldprt	18.30K
219	SWITCHING_OFF_SCREW_1.sldprt	21.31K
220	SWITCHING_OFF_SHELL_1.sldprt	637.23K
221	SWITCHING_OFF_SMALL_SPRING_AF0_.sldprt	60.78K
222	SWITCHING_OFF_SMALL_SPRING_AF1_.sldprt	59.81K
223	SWL2.5丝杆升降型蜗轮丝杆升降机[SWL2.5TP-1AⅡ-250-FQ-C]_SWL2.5TP-1AⅡ-250-FQ-C.sldasm	29.95K
224	SWL2.5丝杆升降型蜗轮丝杆升降机[SWL2.5TP-1AⅡ-250-FQ-C]_SWL2.5TP-1AⅡ-250-FQ-C_2.sldasm	30.69K
225	SWL2.5丝杆升降型蜗轮丝杆升降机[SWL2.5TP-1AⅡ-250-FQ-C]_SWL2.5TP-1AⅡ-250-FQ-C_3.sldasm	30.47K
226	SWL2.5丝杆升降型蜗轮丝杆升降机[SWL2.5TP-1AⅡ-250-FQ-C]_SWL2.5TP-1AⅡ-250-FQ-C_4.sldasm	29.77K
227	SWL2.5丝杆升降型蜗轮丝杆升降机[SWL2.5TP-1AⅡ-250-FQ-C]_丝杆_丝杆1.sldprt	23.68K
228	SWL2.5丝杆升降型蜗轮丝杆升降机[SWL2.5TP-1AⅡ-250-FQ-C]_升降机_升降机.sldprt	99.18K
229	T2-T16系列螺旋锥齿轮转向箱[T4-1：1-D-LR-B3]_T4-1：1-D-LR-B3.sldprt	324.48K
230	TBJ01_M16_L100.sldprt	18.36K
231	TDC42_M8_L30.sldasm	29.35K
232	TDC42_M8_L30_2.sldasm	29.95K
233	TDC42_M8_L30_3.sldasm	29.15K
234	TDC42_M8_L30_3.sldprt	35.78K
235	TDC42_M8_L30_4.sldasm	28.77K
236	TDC42_M8_L30_5.sldasm	29.49K
237	TDC42_M8_L30_5.sldprt	22.63K
238	TDC42_M8_L30_6.sldasm	29.05K
239	TDC42_M8_L30_7.sldasm	28.89K
240	TDC42_M8_L30_8.sldasm	28.83K
241	TSDA-C21B驱动器.SLDPRT	240.59K
242	UKK160A接线盒.SLDPRT	214.19K
243	USB延长线.SLDPRT	174.85K
244	VBF03_F57_R75_N40_VEF03_F57.sldprt	1.87M
245	VBF03_F77_R55_N35_VEF03_F77（YHD）.sldprt	1.67M
246	W10332221_2.sldprt	195.45K
247	W10364225_VIS_SEULE_2.sldprt	99.19K
248	waikezu.SLDASM	390.93K
249	WJC11-2550液压缓冲器怡合达.SLDPRT	138.15K
250	WJN01-25缓冲器螺母怡合达.SLDPRT	92.59K
251	XAD51-A100门把手怡合达.SLDPRT	94.87K
252	XAU01-A-L1000.sldprt	178.39K
253	XB2BS542C_ASM.sldasm	32.82K
254	XB2BS542C急停开关施耐德.SLDASM	4.60M
255	XW-24-24-240W稳压模块.SLDPRT	618.97K
256	XW-24-24-24W稳压模块.SLDPRT	361.70K
257	X舱板保持架.SLDPRT	1.27M
258	YANGGAI_ASM_1_ASM.sldasm	4.59M
259	YJ-GQ22A按钮一佳.SLDPRT	155.43K
260	YWL-D27-L40-怡合达.SLDPRT	596.61K
261	YWL-D27-L40.SLDPRT	183.66K
262	ZB2-BG2C钥匙开关组合施耐德.SLDPRT	374.81K
263	ZB2BZ1605C急停防护罩.SLDPRT	909.77K
264	zhuanxiangzu.SLDASM	7.02M
265	ZJ-LED-L200-H24-BZ.SLDPRT	72.51K
266	ZJ-LED-L300-H24-BZ定制灯条.SLDPRT	104.21K
267	ZLAN7144N2串口服务器.SLDPRT	1.36M
268	ZPLF090-L2-35P2减速机钏匣.SLDPRT	344.27K
269	ZS-GSM10-01-0001焊接车架改.SLDPRT	1.71M
270	ZS-GSM10-01-0002车架安装板1.SLDPRT	130.44K
271	ZS-GSM10-01-0003安全安装条1.SLDPRT	231.27K
272	ZS-GSM10-01-0004安全安装条2.SLDPRT	242.08K
273	ZS-GSM10-01-0005安全安装条3.SLDPRT	220.15K
274	ZS-GSM10-01-0006安全安装条4.SLDPRT	234.39K
275	ZS-GSM10-01-0007雷达安装板.SLDPRT	195.49K
276	ZS-GSM10-01-0008车架安装板2.SLDPRT	139.11K
277	ZS-GSM10-01-0009转动销D20.SLDPRT	110.43K
278	ZS-GSM10-01-0010辅助安装座1.SLDPRT	171.97K
279	ZS-GSM10-01-0012辅助安装座2.SLDPRT	183.82K
280	ZS-GSM10-01-0013台板.SLDPRT	209.03K
281	ZS-GSM10-01-0014导轨垫板.SLDPRT	90.21K
282	ZS-GSM10-01-0015装饰块.SLDPRT	150.20K
283	ZS-GSM10-01-0016IMU安装块.SLDPRT	150.37K
284	ZS-GSM10-01-0017围钣金1.SLDPRT	97.72K
285	ZS-GSM10-01-0018围钣金2.SLDPRT	78.05K
286	ZS-GSM10-01-0019围钣金3.SLDPRT	92.09K
287	ZS-GSM10-01-0020支架钣金1.SLDPRT	179.66K
288	ZS-GSM10-01-0021支架钣金2.SLDPRT	253.54K
289	ZS-GSM10-01-0022支架钣金3.SLDPRT	215.07K
290	ZS-GSM10-01-0023内封板.SLDPRT	606.23K
291	ZS-GSM10-01-0024内钣金L.SLDPRT	174.94K
292	ZS-GSM10-01-0025驱动器钣金1.SLDPRT	202.51K
293	ZS-GSM10-01-0026驱动器钣金2.SLDPRT	180.49K
294	ZS-GSM10-01-0027车架底封板.SLDPRT	239.61K
295	ZS-GSM10-01-0028二维码支架.SLDPRT	255.07K
296	ZS-GSM10-01-0029接插头安装板.SLDPRT	297.87K
297	ZS-GSM10-01-0030接插转接钣金.SLDPRT	462.70K
298	ZS-GSM10-02-0001-00车头外壳组下.SLDASM	182.20K
299	ZS-GSM10-02-0001-01围板下.SLDPRT	220.04K
300	ZS-GSM10-02-0001-02副板1.SLDPRT	186.40K
301	ZS-GSM10-02-0001-03围板中.SLDPRT	203.78K
302	ZS-GSM10-02-0001-04副板2.SLDPRT	79.31K
303	ZS-GSM10-02-0001-05加固板.SLDPRT	147.49K
304	ZS-GSM10-02-0001-06焊接条.SLDPRT	158.75K
305	ZS-GSM10-02-0002-00车头外壳组中.SLDASM	287.99K
306	ZS-GSM10-02-0002-01中围板.SLDPRT	332.71K
307	ZS-GSM10-02-0002-02加固板2.SLDPRT	151.02K
308	ZS-GSM10-02-0002-03加固板3.SLDPRT	72.87K
309	ZS-GSM10-02-0002-04中面板.SLDPRT	423.70K
310	ZS-GSM10-02-0002-05焊接片.SLDPRT	101.28K
311	ZS-GSM10-02-0002-06焊接片2.SLDPRT	85.89K
312	ZS-GSM10-02-0003-00车头外壳组上.SLDASM	134.23K
313	ZS-GSM10-02-0003-01上围板.SLDPRT	363.27K
314	ZS-GSM10-02-0003-02上加固板1.SLDPRT	133.70K
315	ZS-GSM10-02-0003-03中加固板.SLDPRT	137.65K
316	ZS-GSM10-02-0003-04加固钣金.SLDPRT	94.71K
317	ZS-GSM10-02-0004-00物料传感器组件.SLDASM	527.08K
318	ZS-GSM10-02-0004-01轴安装板.SLDPRT	81.47K
319	ZS-GSM10-02-0004-02传感轴.SLDPRT	85.27K
320	ZS-GSM10-02-0005-00维修窗组件.SLDASM	58.48K
321	ZS-GSM10-02-0005-01维修门.SLDPRT	89.50K
322	ZS-GSM10-02-0005-02焊接钣金条.SLDPRT	76.67K
323	ZS-GSM10-02-0005-03收纳盒.SLDPRT	104.46K
324	ZS-GSM10-02-0006铝合金面板框.SLDPRT	301.86K
325	ZS-GSM10-02-0007灯条钣金.SLDPRT	326.42K
326	ZS-GSM10-02-0008限位直条钣金1.SLDPRT	223.55K
327	ZS-GSM10-03-0001-00中间框体1.SLDASM	84.71K
328	ZS-GSM10-03-0001-01车身中钣金2.SLDPRT	191.59K
329	ZS-GSM10-03-0001-02焊接板L.SLDPRT	148.27K
330	ZS-GSM10-03-0002-00中间框体2.SLDASM	98.69K
331	ZS-GSM10-03-0002-01车身中钣金改.SLDPRT	207.86K
332	ZS-GSM10-03-0003充电基座板.SLDPRT	223.67K
333	ZS-GSM10-03-0004车身底钣金.SLDPRT	294.90K
334	ZS-GSM10-03-0005车身上钣金.SLDPRT	429.76K
335	ZS-GSM10-04-0001-00车尾外壳组上.SLDASM	124.74K
336	ZS-GSM10-04-0001-01外钣金.SLDPRT	179.86K
337	ZS-GSM10-05-0001活动板1.SLDPRT	252.20K
338	ZS-GSM10-05-0002车轮轴.SLDPRT	166.69K
339	ZS-GSM10-05-0003盖板1.SLDPRT	121.44K
340	ZS-GSM10-05-0004轴承套.SLDPRT	149.16K
341	ZS-GSM10-05-0005挡圈.SLDPRT	105.69K
342	ZS-GSM10-05-0006中心轴.SLDPRT	174.29K
343	ZS-GSM10-05-0007盖板2.SLDPRT	109.88K
344	ZS-GSM10-05-0008鱼眼座.SLDPRT	167.91K
345	ZS-GSM10-05-0009轴承转动销.SLDPRT	112.83K
346	ZS-GSM10-05-0010轴挡片.SLDPRT	91.37K
347	ZS-GSM10-05-0011小隔套.SLDPRT	96.50K
348	ZS-GSM10-05-0012大隔套.SLDPRT	95.66K
349	ZS-GSM10-07-0001-00安装座组件.SLDASM	161.95K
350	ZS-GSM10-07-0001-01减速机平板.SLDPRT	171.38K
351	ZS-GSM10-07-0001-02底架连接板.SLDPRT	188.82K
352	ZS-GSM10-07-0001-03竖直板.SLDPRT	124.44K
353	ZS-GSM10-07-0002开关安装钣金.SLDPRT	133.18K
354	ZS-GSM10-07-0003-00安装座组件2.SLDASM	136.06K
355	ZS-GSM10-07-0003-01减速机平板2.SLDPRT	153.17K
356	ZS-GSM10-07-0003-02底架连接板2.SLDPRT	209.70K
357	ZS-GSM10-08-0001焊接方管架40.SLDPRT	888.44K
358	ZS-GSM10-08-0002旋转板.SLDPRT	634.98K
359	ZS-GSM10-08-0003D50定位销.SLDPRT	144.58K
360	ZS-GSM10-08-0004过渡盘.SLDPRT	167.45K
361	ZS-GSM10-08-0005碰撞块.SLDPRT	113.97K
362	ZS-GSM10-08-0006小平板.SLDPRT	289.38K
363	ZS-GSM10-08-0007传感器平板.SLDPRT	98.73K
364	ZS-GSM10-08-0008感应片.SLDPRT	192.81K
365	ZS-GSM10-08-0009遮挡钣金1.SLDPRT	188.04K
366	ZS-GSM10-08-0010遮挡板金2.SLDPRT	182.07K
367	ZS-GSM10-08-0011封闭板1.SLDPRT	205.94K
368	ZS-GSM10-08-0012封闭板2.SLDPRT	142.68K
369	ZS-GSM10-08-0013感应钣金.SLDPRT	157.97K
370	ZS-GSM10-08-0014限位环.SLDPRT	120.08K
371	ZS-GSM10-08-0015圆台.SLDPRT	96.43K
372	ZS-GSM10-08-0016折弯片.SLDPRT	188.34K
373	ZS-GSM10-08-0017-00浮动销钉装配体.SLDASM	683.75K
374	ZS-GSM10-08-0017-01铜套.SLDPRT	183.88K
375	ZS-GSM10-08-0017-02新定位销.SLDPRT	166.34K
376	ZS-GSM10-08-0017-03止推垫片.SLDPRT	71.37K
377	ZS-GSM10-08-0018圆柱齿轮120×3.SLDPRT	604.29K
378	ZS-GSM10-08-0019圆柱齿轮40×3.SLDPRT	387.52K
379	ZS-GSM10-08-0020圆柱齿轮40×3-2.SLDPRT	344.49K
380	ZS-GSM10-08-0021板.SLDPRT	144.09K
381	ZS-GSM10-08-0022传动轴.SLDPRT	115.59K
382	ZS-GSM10-08-0023隔套.SLDPRT	69.85K
383	ZS-GSM10-08-0024过渡大圆盘.SLDPRT	169.25K
384	ZS-GSM10-09-0001-00电池钣金框体.SLDASM	135.18K
385	ZS-GSM10-09-0001-01电池底钣金.SLDPRT	319.22K
386	ZS-GSM10-09-0001-02框体焊接筋1.SLDPRT	74.11K
387	ZS-GSM10-09-0001-03框体焊接筋2.SLDPRT	70.71K
388	ZS-GSM10-09-0001-04框体焊接筋3.SLDPRT	93.17K
389	ZS-GSM10-09-0002-00滚轮组.SLDASM	298.50K
390	ZS-GSM10-09-0002-01钣金座1.SLDPRT	234.31K
391	ZS-GSM10-09-0002-02钣金座2.SLDPRT	165.16K
392	ZS-GSM10-09-0002-03销轴12x55.SLDPRT	65.83K
393	ZS-GSM10-09-0002-04销轴6×55.sldprt	102.30K
394	ZS-GSM10-10-0001电气底板.SLDPRT	360.18K
395	Z舱板保持架.SLDPRT	1.02M
396	_IDB11-L660-001.sldprt	110.38K
397	_IDB11-L660-003.sldprt	171.10K
398	_IDB11-L660-005.sldprt	157.25K
399	_X2_7535673A5B8988C56CD55170_X0_70-90-57.sldprt	53.71K
400	_X2_87BA9489_X0_GB_T70.1M5x16.sldprt	36.46K
401	_X2_87BA9489_X0_GB_T70.1M5x20.sldprt	36.18K
402	_X2_8F74627F_X0_61905-ZGB_T276-94.sldprt	59.35K
403	_X2_95017D275668_X0_22-45.sldprt	41.79K
404	____________.step.sldprt	1.28M
405	万集激光雷达WLR-718.SLDPRT	5.16M
406	三菱伺服电机[HG-SN202J-S100]znl.sldprt	1.41M
407	上连板znl.sldprt	30.59K
408	上银线性滑轨[HGH35CA]_HGH35CA.sldprt	253.33K
409	丝杆法兰座-16.sldprt	32.03K
410	丝杆螺母安装块znl.sldprt	27.32K
411	交叉滚子轴承安装板.sldprt	34.55K
412	交叉滚子轴承安装板2.sldprt	41.38K
413	伺服安装座znl.sldprt	24.02K
414	保险丝盒.SLDPRT	178.71K
415	充电安德森.SLDPRT	3.04M
416	光轴znl.sldprt	18.03K
417	单边翻转工装.sldasm	96.24K
418	单边翻转工装2.sldasm	94.61K
419	后大门.sldprt	38.00K
420	后大门2.sldprt	36.94K
421	喇叭8欧10w.SLDPRT	119.81K
422	圆形定位销znl.sldprt	23.00K
423	圆柱齿轮150×3.SLDPRT	655.92K
424	地脚外壳.sldasm	30.01K
425	地脚外壳_2.sldasm	29.91K
426	地脚外壳_3.sldasm	29.86K
427	地脚外壳_4.sldasm	29.51K
428	地脚外壳_5.sldasm	29.67K
429	地脚外壳_6.sldasm	29.69K
430	地面.SLDPRT	60.17K
431	垂直风琴防护罩2.sldprt	96.48K
432	复件2装配体37^单边翻转工装.sldasm	30.42K
433	复件2装配体37^单边翻转工装2.sldasm	30.21K
434	复件2装配体37^单边翻转工装2_2.sldasm	29.89K
435	复件2装配体37^单边翻转工装2_3.sldasm	29.76K
436	复件2装配体37^单边翻转工装_2.sldasm	30.59K
437	复件2装配体37^单边翻转工装_3.sldasm	30.43K
438	外侧面板-件1_默认_按加工_.sldprt	50.96K
439	外侧面板-件2_默认_按加工_.sldprt	51.13K
440	外侧面板-件3_默认_按加工_.sldprt	51.13K
441	外侧面板-件4_默认_按加工_.sldprt	50.95K
442	安川伺服电机[SGMAV-08AA6C.sldasm	30.34K
443	安川伺服电机[SGMAV-08AA6C].step.sldasm	30.64K
444	安川伺服电机[SGMAV-08AA6C].step_2.sldasm	30.30K
445	安川伺服电机[SGMAV-08AA6C].step_3.sldasm	29.87K
446	安川伺服电机[SGMAV-08AA6C].step_4.sldasm	31.00K
447	安川伺服电机[SGMAV-08AA6C_2.sldasm	30.36K
448	安川伺服电机[SGMAV-08AA6C_3.sldasm	30.07K
449	安川伺服电机[SGMAV-08AA6C_4.sldasm	29.16K
450	定位销座-2.sldprt	25.50K
451	定位销座znl.sldprt	31.05K
452	定位销座_1.sldprt	37.10K
453	导轨1.SLDPRT	192.93K
454	工业美观板-1.sldprt	24.64K
455	怡合达同步带ECP31-S8M-150-424.sldprt	20.83K
456	怡合达同步带轮EBL01_S8M150_28_B_N_d19.sldprt	116.87K
457	怡合达同步带轮EBL01_S8M150_28_B_N_d35.sldprt	116.98K
458	怡合达导向轴支座GFC01_D40.sldprt	30.33K
459	怡合达支撑侧LEB31_25.sldprt	35.50K
460	怡合达方形固定支座固定侧经济型LEB41_25.sldprt	78.96K
461	怡合达直线轴承LMQ21_d40.sldprt	28.99K
462	怡合达膜片联轴器DBJ11_D55_d20_e22.sldprt	88.52K
463	悬臂加强筋.sldprt	21.90K
464	悬臂板.sldprt	24.19K
465	拖链安装支架.sldprt	25.53K
466	拖链安装板3.sldprt	27.47K
467	拖链安装钣金2.sldprt	30.88K
468	拖链安装钣金4.sldprt	24.65K
469	拖链安装钣金5.sldprt	32.94K
470	挡块.sldprt	22.05K
471	接线端子.SLDPRT	237.24K
472	支撑座znl.sldprt	26.85K
473	支撑脚-1.sldprt	21.66K
474	斯迈迪主板.SLDPRT	75.64K
475	无油轴承23-20-10.SLDPRT	121.38K
476	无油轴承23-20-15.SLDPRT	120.76K
477	横LOGOYHHT2.sldprt	353.41K
478	水平平移装置.sldasm	58.46K
479	水平平移装置_2.sldasm	58.66K
480	油缸.SLDPRT	254.14K
481	滑台X轴底盘znl_默认_按加工_.sldprt	171.55K
482	滑块垫板_默认_按加工_.sldprt	36.71K
483	滑块盖板.sldprt	22.83K
484	电柜.sldasm	30.60K
485	电柜_2.sldasm	30.28K
486	电柜箱体.sldprt	34.69K
487	移栽滑块焊接架-znl_默认_按加工_.sldprt	234.91K
488	精测滑台（待更新）.SLDASM	5.13M
489	线槽A01-40x60-S[33×33×100-M].SLDPRT	1.38M
490	线槽A01-40x60-S[33×33×200-M].SLDPRT	1.45M
491	线槽A01-40x60-S[33×33×500-M].SLDPRT	1.65M
492	线槽A01-40x60-S[33×33×700-M].sldprt	1.81M
493	绝缘柱.SLDPRT	77.45K
494	网口延长线.SLDPRT	213.89K
495	翻转机构总装图.SLDASM	7.58M
496	脚踏板6.sldprt	20.47K
497	装配体1.sldasm	47.85K
498	装配体1_2.sldasm	47.37K
499	装配体2.sldasm	43.93K
500	装配体2_2.sldasm	43.56K
501	装配体3.sldasm	40.96K
502	装配体4.sldasm	39.79K
503	装配支撑台.SLDPRT	2.32M
504	触边条1-副本-副本.sldprt	158.13K
505	触边条1.sldprt	77.72K
506	语音播报模块.SLDPRT	1.19M
507	调整地面垫片2.sldprt	21.63K
508	调节空心螺丝.sldprt	24.55K
509	遮光片.sldprt	27.94K
510	问题2.28.txt	379B
511	风琴罩固定板1.sldprt	19.12K
512	风琴罩固定板2.sldprt	22.98K
513	风琴罩固定板3.sldprt	21.61K
514	风琴防护罩.sldprt	71.41K
515	风琴防护罩2.sldprt	89.79K
516	高度调节组件2.sldasm	32.05K
517	高度调节组件2_10.sldasm	31.39K
518	高度调节组件2_11.sldasm	32.35K
519	高度调节组件2_12.sldasm	31.65K
520	高度调节组件2_2.sldasm	31.88K
521	高度调节组件2_3.sldasm	31.57K
522	高度调节组件2_4.sldasm	32.08K
523	高度调节组件2_5.sldasm	32.14K
524	高度调节组件2_6.sldasm	32.11K
525	高度调节组件2_7.sldasm	31.74K
526	高度调节组件2_8.sldasm	32.22K
527	高度调节组件2_9.sldasm	32.34K

机械资料库

工程师必备！

麦轮AGV小车

机械资料库

机械面试题库—工程师月薪过万的秘籍

机械图纸下载—海量图纸助力设计创新

设计资料库—海量资料简化设计
